This script reproduces the analysis performed in Supplementary Figure 3. Here, we will load the libraries and data for this figure:
library(cytomapper)
library(dplyr)
sce <- readRDS("data/PancreasData/pancreas_sce.rds")
masks <- readRDS("data/PancreasData/pancreas_masks.rds")
images <- readRDS("data/PancreasData/pancreas_images.rds")Here, we will highlight a few images that contain different cell-types and outline these using the segmentation masks. This analysis will visually confirm cell-type phenotyping and segmentation results.
We will first select images with a high count of CD4 and CD8 T cells.
# Select the image with the highest T cell density
selected_images <- as_tibble(colData(sce)) %>%
# Calculate for each image the area, number of T cells and T cell density
group_by(ImageName) %>%
summarise(width = mean(width),
height = mean(height),
ImageArea = (width * height) / 10^6,
TcellCount = sum(CellType == "Tc" | CellType == "Th"),
TcellDensity = TcellCount / ImageArea) %>%
arrange(desc(TcellDensity))`summarise()` ungrouping output (override with `.groups` argument)Now, we will visualize the top image and outline CD4 and CD8 T cells.
top_images <- selected_images$ImageName[1]
cur_images <- images[match(top_images, mcols(images)$ImageName)]
cur_masks <- masks[match(top_images, mcols(images)$ImageName)]
cur_sce <- sce[,sce$CellType == "Th"]
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "CD4"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
CD4 = c("black", "red"),
CellType = c(Th = "white")),
bcg = list(H3 = c(0, 1.5, 1),
CD4 = c(0, 6, 1)),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(20, 20)),
legend = list(colour_by.title.cex = 1.5,
margin = 50))
# Save image
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "CD4"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
CD4 = c("black", "red"),
CellType = c(Th = "white")),
bcg = list(H3 = c(0, 1.5, 1),
CD4 = c(0, 6, 1)),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(20, 20)),
legend = list(colour_by.title.cex = 1.5,
margin = 50),
save_plot = list(filename = "docs/final_figures/supplements/Fig_S3A.png", scale = 3))

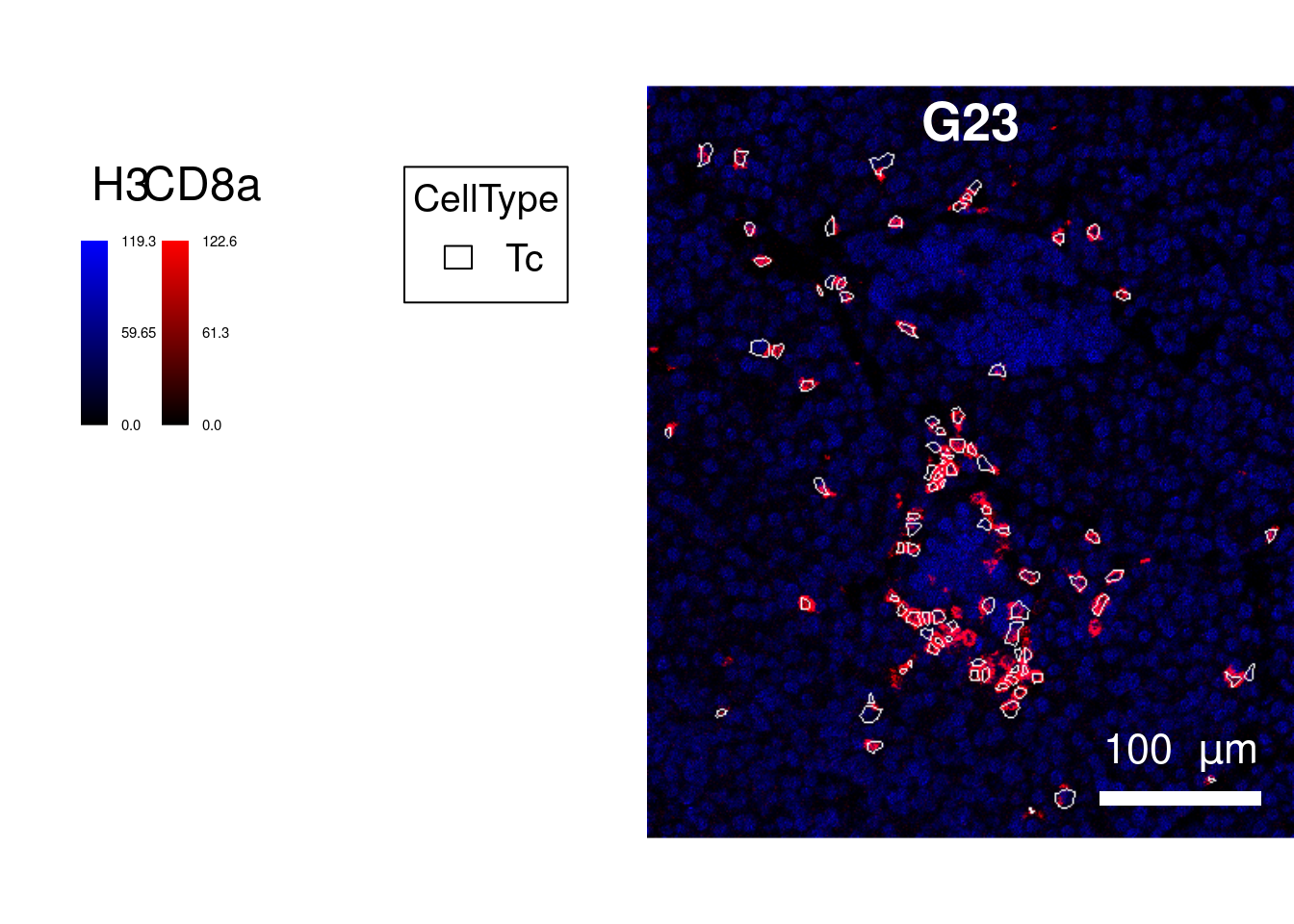

cur_sce <- sce[,sce$CellType == "Tc"]
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "CD8a"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
CD8a = c("black", "red"),
CellType = c(Tc = "white")),
bcg = list(H3 = c(0, 1.5, 1),
CD8a = c(0, 6, 1)),
legend = list(colour_by.title.cex = 1.5,
margin = 50),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(20, 20)))
# Save image
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "CD8a"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
CD8a = c("black", "red"),
CellType = c(Tc = "white")),
bcg = list(H3 = c(0, 1.5, 1),
CD8a = c(0, 6, 1)),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(20, 20)),
legend = list(colour_by.title.cex = 1.5,
margin = 50),
save_plot = list(filename = "docs/final_figures/supplements/Fig_S3B.png", scale = 3))As a second example, we will select images with high alpha and beta cell count and perform a similar analysis as above. Due to the loss of beta cells, we will only select images of healthy patients.
# Select the three images with the highest alpha and beta cell density
selected_images <- as_tibble(colData(sce)) %>%
filter(stage == "Non-diabetic") %>%
group_by(ImageName) %>%
summarise(width = mean(width),
height = mean(height),
ImageArea = (width * height) / 10^6,
alphaCellCount = sum(CellType == "alpha"),
alphaCellDensity = alphaCellCount / ImageArea,
betaCellCount = sum(CellType == "beta"),
betaCellDensity = betaCellCount / ImageArea) %>%
mutate(alphaCellRank = rank(alphaCellDensity),
betaCellRank = rank(betaCellDensity),
rankSum = alphaCellRank + betaCellRank) %>%

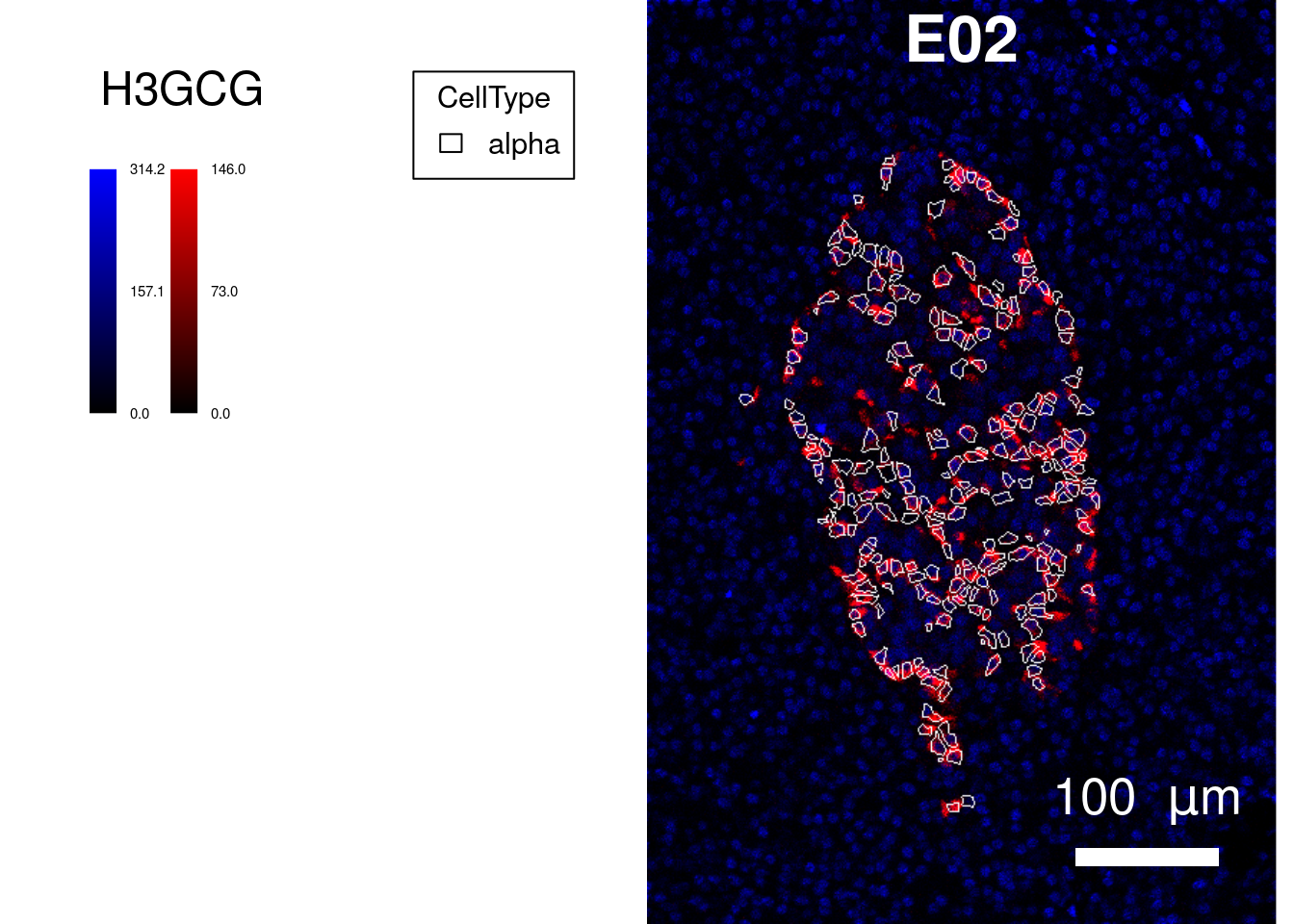

arrange(desc(rankSum))`summarise()` ungrouping output (override with `.groups` argument)We will now outline alpha and beta cells.
top_images <- selected_images$ImageName[1]
cur_images <- images[match(top_images, mcols(images)$ImageName)]
cur_masks <- masks[match(top_images, mcols(images)$ImageName)]
cur_sce <- sce[,sce$CellType == "alpha"]
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "GCG"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
GCG = c("black", "red"),
CellType = c(alpha = "white")),
bcg = list(H3 = c(0, 6, 1),
GCG = c(0, 6, 1)),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(40, 40)),
legend = list(colour_by.title.cex = 1.5,
margin = 50))
# Save image
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "GCG"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
GCG = c("black", "red"),
CellType = c(alpha = "white")),
bcg = list(H3 = c(0, 6, 1),
GCG = c(0, 6, 1)),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(40, 40)),
legend = list(colour_by.title.cex = 1.5,
margin = 50),
save_plot = list(filename = "docs/final_figures/supplements/Fig_S3C.png", scale = 3))

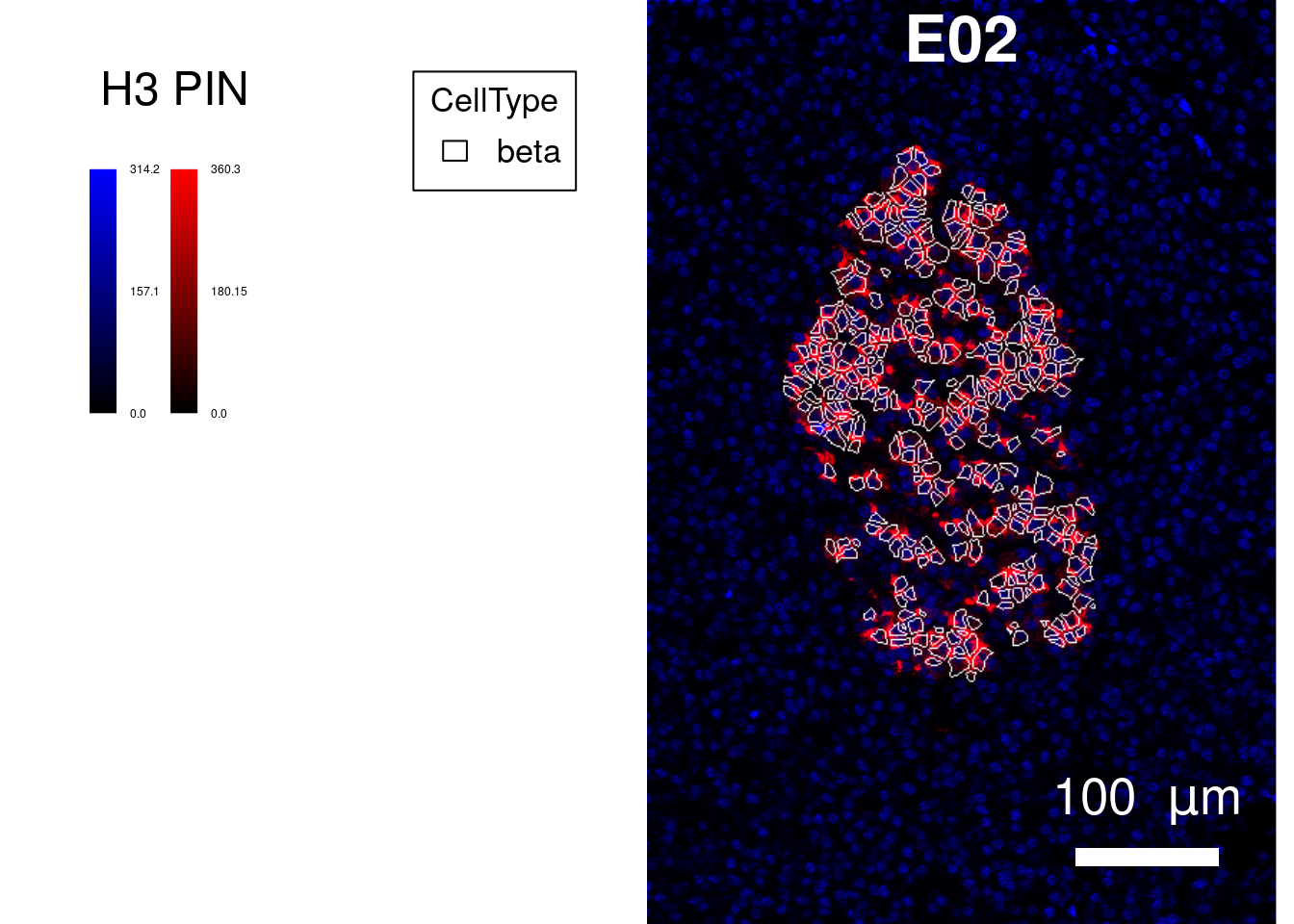

cur_sce <- sce[,sce$CellType == "beta"]
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "PIN"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
PIN = c("black", "red"),
CellType = c(beta = "white")),
bcg = list(H3 = c(0, 6, 1),
PIN = c(0, 6, 1)),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(40, 40)),
legend = list(colour_by.title.cex = 1.5,
margin = 50))
# Save image
plotPixels(image = cur_images,
object = cur_sce,
mask = cur_masks,
img_id = "ImageName",
cell_id = "CellNumber",
colour_by = c("H3", "PIN"),
outline_by = "CellType",
colour = list(H3 = c("black", "blue"),
PIN = c("black", "red"),
CellType = c(beta = "white")),
bcg = list(H3 = c(0, 6, 1),
PIN = c(0, 6, 1)),
scale_bar = list(length = 100,
label = expression("100 " ~ mu * "m"),
margin = c(40, 40)),
legend = list(colour_by.title.cex = 1.5,
margin = 50),
save_plot = list(filename = "docs/final_figures/supplements/Fig_S3D.png", scale = 3))
