Introduction

This script performs cell-type classification based on manually labelled cells. We will create increasing complexity for cell type labelling.

Preparations

knitr::opts_chunk$set(echo = TRUE, message= FALSE)
knitr::opts_knit$set(root.dir = rprojroot::find_rstudio_root_file())

Read in data

First, we will read in the SingleCellExperiment object and load all libraries.

library(caret)
library(scater)
library(tidyverse)
library(dittoSeq)
library(viridis)
library(doParallel)
library(ggpubr)
library(randomForest)

Load data

sce <- readRDS("data/data_for_analysis/sce_protein.rds")

# load all subsetted sce object from hierarchichal gating and combine the
label.files <- list.files("data/data_for_analysis/protein/celltype_classifier/", full.names = TRUE)

# Read in SCE objects
cur_sces <- lapply(label.files, readRDS)

# Merge SCE objects
# Due to relabelling, we now need to match the colData entries and remove rowData
cur_entries <- names(colData(cur_sces[[1]]))

cur_sces <- lapply(cur_sces, function(x){
  colData(x) <- colData(x)[,cur_entries]
  rowData(x) <- NA
  return(x)
  })

labelled_sce <- do.call("cbind", cur_sces)

# add rowData
rowData(labelled_sce) <- rowData(sce)

Rename Celltypes

unique(labelled_sce$cytomapper_CellLabel)
 [1] "Bcell"       "BnTcell"     "Macrophage"  "Neutrophil"  "pDC"
 [6] "Stroma"      "Tcytotoxic"  "Thelper"     "Tregulatory" "Tumor"
[11] "unknown"
labelled_sce[,labelled_sce$cytomapper_CellLabel == "Bcell"]$cytomapper_CellLabel <- "B cell"
labelled_sce[,labelled_sce$cytomapper_CellLabel == "BnTcell"]$cytomapper_CellLabel <- "BnT cell"
labelled_sce[,labelled_sce$cytomapper_CellLabel == "Tcytotoxic"]$cytomapper_CellLabel <- "CD8+ T cell"
labelled_sce[,labelled_sce$cytomapper_CellLabel == "Thelper"]$cytomapper_CellLabel <- "CD4+ T cell"
labelled_sce[,labelled_sce$cytomapper_CellLabel == "Tregulatory"]$cytomapper_CellLabel <- "FOXP3+ T cell"

Duplicates

# how many duplicates do we have?
ncol(labelled_sce[,duplicated(labelled_sce$cellID) == T]) / ncol(labelled_sce[,duplicated(labelled_sce$cellID) == F]) * 100
[1] 0.06727787
# remove duplicates (more than 1 label per cellID)
unique_labels <- labelled_sce[,duplicated(labelled_sce$cellID) == F]

Add labels to SCE object

unique(unique_labels$cytomapper_CellLabel)
 [1] "B cell"        "BnT cell"      "Macrophage"    "Neutrophil"
 [5] "pDC"           "Stroma"        "CD8+ T cell"   "CD4+ T cell"
 [9] "FOXP3+ T cell" "Tumor"         "unknown"
label_vector <- rep("unlabelled", ncol(sce))
names(label_vector) <- colnames(sce)
label_vector[colnames(unique_labels)] <- unique_labels$cytomapper_CellLabel

# add to sce
colData(sce)$layer_1_gated <- label_vector

Create colour vector

Here, we will define a colour vector for the cell-types contained in layer 1.

layer1_colours <- vector(length = length(unique(label_vector)))
names(layer1_colours) <- unique(label_vector)

layer1_colours["BnT cell"] <- "goldenrod2"
layer1_colours["B cell"] <- "green1"
layer1_colours["Macrophage"] <- "greenyellow"
layer1_colours["Neutrophil"] <- "blue1"
layer1_colours["CD4+ T cell"] <- "yellow"
layer1_colours["FOXP3+ T cell"] <- "sienna1"
layer1_colours["pDC"] <- "red2"
layer1_colours["Stroma"] <- "tomato"
layer1_colours["CD8+ T cell"] <- "deepskyblue"
layer1_colours["Tumor"] <- "sienna4"
layer1_colours["unknown"] <- "gray"
layer1_colours["unlabelled"] <- "gray"

# Save in SCE object
metadata(sce)$colour_vectors$layer_1 <- layer1_colours

Quality control

In the next step, we will check the quality of the labels by:

  1. checking how many cells contain multiple labels (see chunk 2)
  2. how many cells of how many images are labeled
  3. how balanced the classes are
  4. if the selected cells actually express the markers that they are supposed to express

Next, we will check how many cells and how many images are labelled.

# 2. How many cells of how many images are labelled

# Percent cells labelled
as_tibble(colData(sce)) %>%
  summarise(labelled_cells = sum(layer_1_gated != "unlabelled")/n()) * 100
  labelled_cells
1       8.863518
# Percent images labelled
as_tibble(colData(sce)) %>%
  group_by(ImageNumber) %>%
  summarise(labelled_cells = sum(layer_1_gated != "unlabelled")) %>%
  ungroup() %>%
  summarise(labelled_images = sum(labelled_cells != 0)/n()) * 100
  labelled_images
1        42.51497
# Percent of cells labelled per image
as_tibble(colData(sce)) %>%
  group_by(ImageNumber) %>%
  summarise(labelled_cells = sum(layer_1_gated != "unlabelled")/n(),
            number_cells = n()) %>%
  as.data.frame()
    ImageNumber labelled_cells number_cells
1             1    0.005673409         4054
2             2    0.693469672         8606
3             3    0.387682493         8151
4             4    0.080830616         5827
5             5    0.277162359         8937
6             6    0.646044158         4348
7             7    0.083700441         8172
8             8    0.656653747         6192
9             9    0.540270346         7102
10           10    0.145543745         1223
11           11    0.000000000         8051
12           12    0.023703041         4472
13           13    0.384896023         8223
14           14    0.240790656         6678
15           15    0.018567639         4524
16           16    0.000000000          150
17           17    0.000000000         4282
18           18    0.354059609         9730
19           19    0.460003837         5213
20           20    0.000000000         6404
21           21    0.014819588         3104
22           22    0.000000000         6044
23           23    0.000000000         5163
24           24    0.000000000         3676
25           25    0.000000000         7588
26           26    0.010978520         2095
27           27    0.263806287         2354
28           28    0.000000000         2860
29           29    0.130766749         9299
30           30    0.022828220         9681
31           31    0.450201497         5211
32           32    0.856838744         7516
33           33    0.154418539        14111
34           34    0.000000000         7979
35           35    0.000000000         6390
36           36    0.015293537         4054
37           37    0.081128189         6311
38           38    0.000000000         7972
39           39    0.000000000         5838
40           40    0.000000000         3583
41           41    0.000000000         6265
42           42    0.411458333         4032
43           43    0.000000000        12718
44           44    0.443698950         3428
45           45    0.039334577         6432
46           46    0.000000000         1725
47           47    0.119944212        10038
48           48    0.000000000        13418
49           49    0.000000000         6955
50           50    0.000000000        11348
51           51    0.000000000          397
52           52    0.089435014         7894
53           53    0.000000000         4225
54           54    0.000000000         1554
55           55    0.000000000         3822
56           56    0.016384018         3479
57           57    0.000000000         1124
58           58    0.145661811         3158
59           59    0.023677079         7011
60           60    0.000000000         7333
61           61    0.000000000         6449
62           62    0.000000000          623
63           63    0.163449163         1554
64           64    0.415044172        11659
65           65    0.000000000         1884
66           66    0.000000000         9010
67           67    0.000000000         5410
68           68    0.647529706         7995
69           69    0.035565177         6467
70           70    0.000000000         4677
71           71    0.000000000          498
72           72    0.117969495         4196
73           73    0.224781119         5254
74           74    0.000000000          936
75           75    0.005124162         7611
76           76    0.451695050         6283
77           77    0.073209073         4453
78           78    0.086204082         6125
79           79    0.000000000         2316
80           80    0.000000000         5077
81           81    0.000000000         7437
82           82    0.036069442         5933
83           83    0.044240130         9245
84           84    0.000000000         7433
85           85    0.014137264         8276
86           86    0.122383857        10655
87           87    0.000000000         4625
88           88    0.000000000         8381
89           89    0.000000000         8795
90           90    0.000000000         6276
91           91    0.000000000         5592
92           92    0.000000000         4971
93           93    0.000000000         7830
94           94    0.000000000        11871
95           95    0.223364019        14013
96           96    0.000000000         7064
97           97    0.000000000         5448
98           98    0.000000000         1583
99           99    0.000000000         5865
100         100    0.003671409         2179
101         101    0.090753425         4088
102         102    0.055220641         4147
103         103    0.000000000         8063
104         104    0.103303303         6660
105         105    0.000000000         9135
106         106    0.000000000         4230
107         107    0.000000000         5316
108         108    0.020666920         7887
109         109    0.000000000         8182
110         110    0.028205128         8580
111         111    0.000000000          994
112         112    0.000000000         7230
113         113    0.022005295         6044
114         114    0.008444537         9592
115         115    0.000000000         5326
116         116    0.000000000         5164
117         117    0.000000000         2520
118         118    0.188493151         7300
119         119    0.000000000         9371
120         120    0.000000000         7119
121         121    0.000000000         3693
122         122    0.000000000        10368
123         123    0.000000000         7635
124         124    0.000000000         5999
125         125    0.000000000         6573
126         126    0.000000000         7288
127         127    0.000000000         6411
128         128    0.000000000         6508
129         129    0.000000000         7698
130         130    0.631642879         6586
131         131    0.000000000         6072
132         132    0.064892136         5748
133         133    0.085784818         4861
134         134    0.058528428         6578
135         135    0.000000000         7615
136         136    0.000000000         5898
137         137    0.000000000         5788
138         138    0.000000000         4631
139         139    0.032942993         7771
140         140    0.022099448         4525
141         141    0.027125540        11797
142         142    0.061248528         5943
143         143    0.000000000         6024
144         144    0.000000000         5584
145         145    0.098246355         9466
146         146    0.000000000         8089
147         147    0.000000000         7454
148         148    0.021767297         3859
149         149    0.000000000         6605
150         150    0.000000000         6910
151         151    0.000000000         5720
152         152    0.000000000         3895
153         153    0.000000000         6053
154         154    0.000000000         3958
155         155    0.000000000         3183
156         156    0.000000000         6238
157         157    0.000000000         2151
158         158    0.126542400         3809
159         159    0.000000000         5162
160         160    0.000000000          844
161         161    0.120879121         4914
162         162    0.082316344         8358
163         163    0.000000000          969
164         164    0.000000000         2304
165         165    0.000000000         3467
166         166    0.000000000          578
167         167    0.000000000         1403

We will check how balanced the classes are across the images.

# Total cells per class
as_tibble(colData(sce)) %>%
  group_by(layer_1_gated) %>%
  summarise(number_cells = n())
# A tibble: 12 × 2
   layer_1_gated number_cells
   <chr>                <int>
 1 B cell                9476
 2 BnT cell              3512
 3 CD4+ T cell           7087
 4 CD8+ T cell           3617
 5 FOXP3+ T cell          791
 6 Macrophage            3640
 7 Neutrophil            2620
 8 pDC                    700
 9 Stroma                2919
10 Tumor                53023
11 unknown                311
12 unlabelled          901708
# Total cells per class and Sample
as_tibble(colData(sce)) %>%
  group_by(layer_1_gated, ImageNumber) %>%
  summarise(number_cells = n()) %>%
  as.data.frame() %>%
  head(.)
  layer_1_gated ImageNumber number_cells
1        B cell          14          813
2        B cell          33         1572
3        B cell          64         4191
4        B cell          86          844
5        B cell          95          651
6        B cell         118          440

Now, we will check the expression of selected markers across the classes and visualize cell labels on UMAP.

lab_sce <- sce[,sce$layer_1_gated != "unlabelled"]
agr_sce <- aggregateAcrossCells(lab_sce, ids = colData(lab_sce)[,c("ImageNumber", "layer_1_gated")],
                                average = TRUE)
Warning: 'average=' is deprecated, use 'statistics=' instead
assay(agr_sce, "asinh") <- asinh(counts(agr_sce))
assay(agr_sce, "scaled_asinh") <- t(scale(t(asinh(counts(agr_sce)))))

colnames(agr_sce) <- paste0(agr_sce$ImageNumber, "_", agr_sce$layer_1_gated)

# Define markers that were used for gating
rownames(sce)
 [1] "Vimentin"  "Caveolin1" "HistoneH3" "SMA"       "CD15"      "H3K27me3"
 [7] "CD7"       "CXCR2"     "HLADR"     "S100"      "CD19"      "CD45RA"
[13] "Sox9"      "TOX1"      "CD20"      "CD68"      "pERK"      "CD3"
[19] "CD36"      "p75"       "PD1"       "MiTF"      "CD11b"     "GrzB"
[25] "PDL1"      "TCF7"      "CD45RO"    "FOXP3"     "ICOS"      "bCatenin"
[31] "CD8"       "Collagen1" "Ki67"      "CD11c"     "pS6"       "CD4"
[37] "IDO1"      "SOX10"     "CD303"     "CD206"     "PARP"      "DNA1"
[43] "DNA2"      "Ki67Pt198" "CD45"      "MPO"
cur_markers <- c("CD15", "S100", "CD20", "CD68", "CD3", "p75", "MiTF", "FOXP3", "CD8", "Collagen1",
                 "CD4", "IDO1", "SOX10", "CD303", "MPO")

# Non-scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "asinh",
             cells.use = colnames(agr_sce[cur_markers,]),
            annot.by = c("ImageNumber", "layer_1_gated"),
            order.by = "layer_1_gated", cluster_rows = FALSE,
            scale = "none", heatmap.colors = viridis(100),
            annotation_colors = list(layer_1_gated = metadata(sce)$colour_vectors$layer_1))

Version Author Date
7e52c83 toobiwankenobi 2022-02-22
# Centered and scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "scaled_asinh",
            annot.by = c("ImageNumber", "layer_1_gated"),
            order.by = "layer_1_gated", cluster_rows = FALSE,
            annotation_colors = list(layer_1_gated = metadata(sce)$colour_vectors$layer_1),
            heatmap.colors = colorRampPalette(c("dark blue", "white", "dark red"))(100),
            breaks = seq(-3, 3, length.out = 101))

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

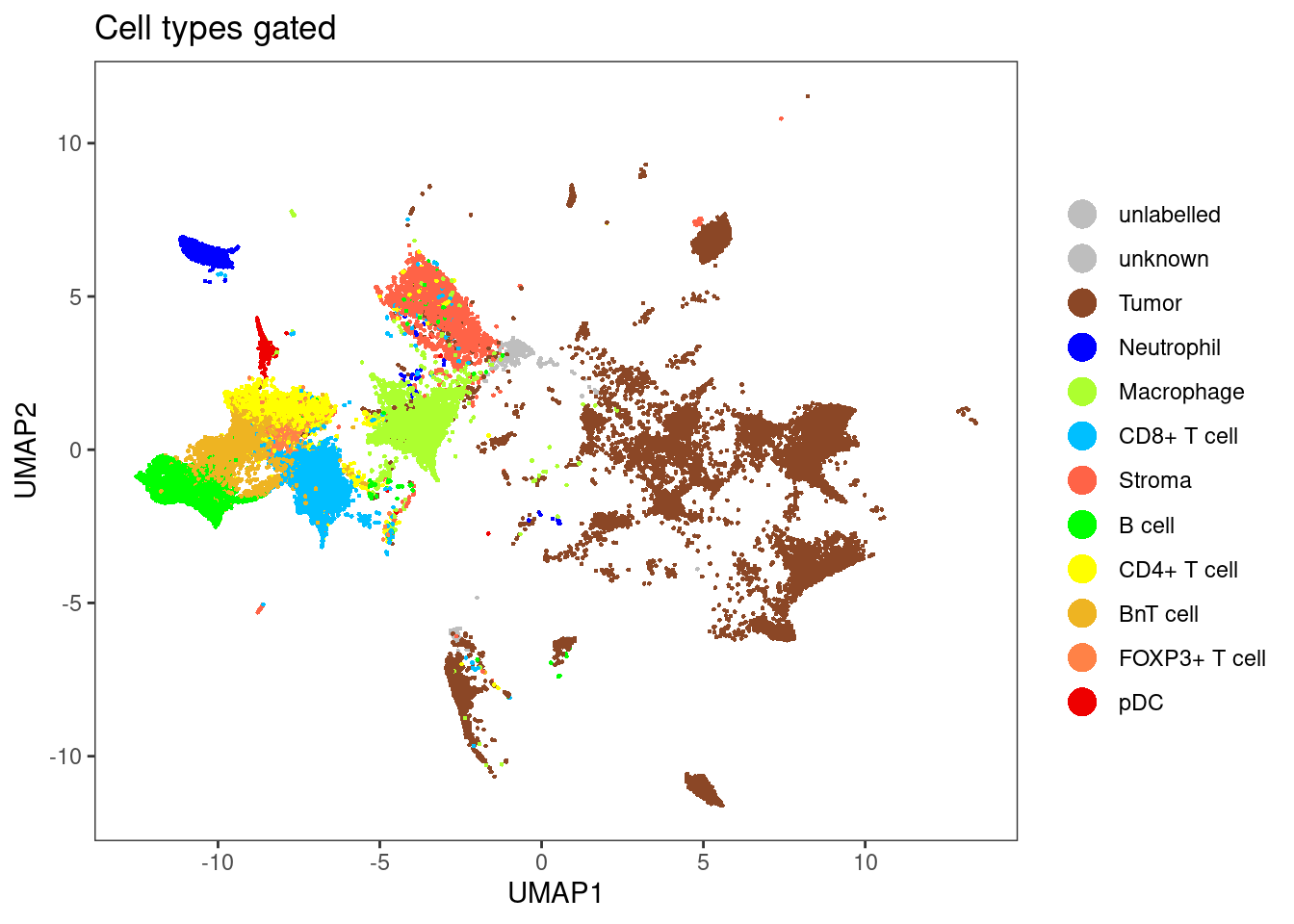

unlab_sce <- sce[,sce$layer_1_gated == "unlabelled"]

ggplot() +
  geom_point(aes(x = UMAP1, y = UMAP2, colour = layer_1_gated),
             data = data.frame(UMAP1 = reducedDim(unlab_sce, "UMAP")[,1],
                               UMAP2 = reducedDim(unlab_sce, "UMAP")[,2],
                               layer_1_gated = colData(unlab_sce)$layer_1_gated)) +
    geom_point(aes(x = UMAP1, y = UMAP2, colour = layer_1_gated), size = 0.5,
             data = data.frame(UMAP1 = reducedDim(lab_sce, "UMAP")[,1],
                               UMAP2 = reducedDim(lab_sce, "UMAP")[,2],
                               layer_1_gated = colData(lab_sce)$layer_1_gated)) +
  scale_color_manual(values = metadata(sce)$colour_vectors$layer_1) +
  theme_bw()

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

Random Forrest Training

After quality control, we will now use a random forest classifier to classify the remaining cells in the dataset.

Splitting by cell-types

In the first instance, we will split the labelled data based on their cell-types and ignore from which images the calls come. In the current setting most images have been labelled but in the future we want to have a closer look at how well cells of non-labelled images are classified.

Train and validate the classifier

We will first split the labelled data into training and test (validation) data at a ratio of 70/30 train/test.

set.seed(1234)
trainIndex <- createDataPartition(factor(lab_sce$layer_1_gated), p = 0.70)
train_sce <- lab_sce[,trainIndex$Resample1]
test_sce <- lab_sce[,-trainIndex$Resample1]

Here, we will first use a 10-fold crossvalidation by partitioning the data randomly across the full dataset. This process is repeated 5 times. We will also use parallel processing for time reasons. For the randomForrest classifier, we need to tune the mtry parameter - the number of variables sampled for each split.

# Define seeds for parallel processing
# Per iteration, we evaluate 10 models while tuning mtry
set.seed(222)
seeds <- vector(mode = "list", length = 11)
for (i in 1:10) {
  seeds[[i]] <- sample.int(5000, 10)
}

seeds[[11]] <- sample.int(5000, 1)

fitControl <- trainControl(method = "repeatedcv",
                           repeats = 1,
                           number = 10,
                           seeds = seeds)

cl <- makePSOCKcluster(round(detectCores()/2,0), outfile = "")
registerDoParallel(cl)

set.seed(1234)
start = Sys.time()
rffit <- train(x = t(assay(train_sce, "asinh")[rowData(sce)$good_marker,]),
               y = factor(train_sce$layer_1_gated),
               method = "rf", ntree = 500,
               tuneLength = 10,
               trControl = fitControl,
               allowParallel = TRUE)
stopCluster(cl)
end = Sys.time()
print(end-start)
Time difference of 17.97361 mins
rffit
Random Forest

61391 samples
   39 predictor
   11 classes: 'B cell', 'BnT cell', 'CD4+ T cell', 'CD8+ T cell', 'FOXP3+ T cell', 'Macrophage', 'Neutrophil', 'pDC', 'Stroma', 'Tumor', 'unknown'

No pre-processing
Resampling: Cross-Validated (10 fold, repeated 1 times)
Summary of sample sizes: 55250, 55253, 55251, 55252, 55253, 55253, ...
Resampling results across tuning parameters:

  mtry  Accuracy   Kappa
   2    0.9953413  0.9923472
   6    0.9969051  0.9949197
  10    0.9970842  0.9952134
  14    0.9971820  0.9953735
  18    0.9973938  0.9957214
  22    0.9973612  0.9956678
  26    0.9973937  0.9957208
  30    0.9970028  0.9950782
  34    0.9964978  0.9942478
  39    0.9959929  0.9934172

Accuracy was used to select the optimal model using the largest value.
The final value used for the model was mtry = 18.

We will now have a look at the accuracy measures over iterations. The only parameter that has been tuned is mtry.

ggplot(rffit) +
  geom_errorbar(data = rffit$results,
                aes(ymin = Accuracy - AccuracySD,
                    ymax = Accuracy + AccuracySD),
                width = 0.4)

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

We can also compute the confusion matrix:

confusionMatrix(rffit)
Cross-Validated (10 fold, repeated 1 times) Confusion Matrix

(entries are percentual average cell counts across resamples)

               Reference
Prediction      B cell BnT cell CD4+ T cell CD8+ T cell FOXP3+ T cell
  B cell          10.8      0.0         0.0         0.0           0.0
  BnT cell         0.0      4.0         0.1         0.0           0.0
  CD4+ T cell      0.0      0.0         8.0         0.0           0.0
  CD8+ T cell      0.0      0.0         0.0         4.1           0.0
  FOXP3+ T cell    0.0      0.0         0.0         0.0           0.9
  Macrophage       0.0      0.0         0.0         0.0           0.0
  Neutrophil       0.0      0.0         0.0         0.0           0.0
  pDC              0.0      0.0         0.0         0.0           0.0
  Stroma           0.0      0.0         0.0         0.0           0.0
  Tumor            0.0      0.0         0.0         0.0           0.0
  unknown          0.0      0.0         0.0         0.0           0.0
               Reference
Prediction      Macrophage Neutrophil  pDC Stroma Tumor unknown
  B cell               0.0        0.0  0.0    0.0   0.0     0.0
  BnT cell             0.0        0.0  0.0    0.0   0.0     0.0
  CD4+ T cell          0.0        0.0  0.0    0.0   0.0     0.0
  CD8+ T cell          0.0        0.0  0.0    0.0   0.0     0.0
  FOXP3+ T cell        0.0        0.0  0.0    0.0   0.0     0.0
  Macrophage           4.1        0.0  0.0    0.0   0.0     0.0
  Neutrophil           0.0        3.0  0.0    0.0   0.0     0.0
  pDC                  0.0        0.0  0.8    0.0   0.0     0.0
  Stroma               0.0        0.0  0.0    3.3   0.0     0.0
  Tumor                0.0        0.0  0.0    0.0  60.4     0.0
  unknown              0.0        0.0  0.0    0.0   0.0     0.3

 Accuracy (average) : 0.9974

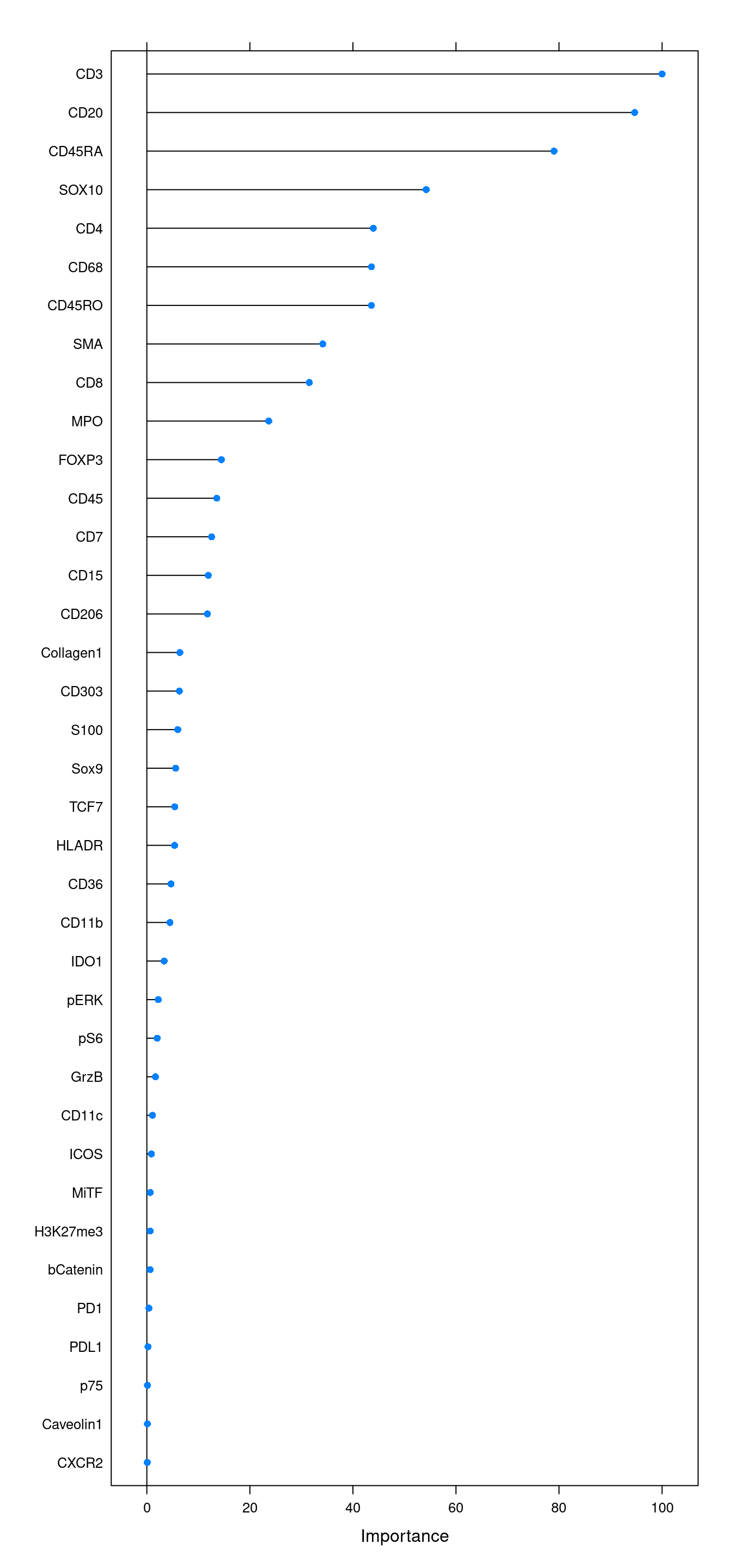

We will also look at the variable importance.

cur_varImp <- varImp(rffit)
plot(cur_varImp, top = 37)

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

Finally, we will validate the model using the test data.

cur_pred <- predict(rffit, newdata = t(assay(test_sce, "asinh")[rowData(sce)$good_marker,]))

cm <- confusionMatrix(data = cur_pred, reference = factor(test_sce$layer_1_gated))
cm
Confusion Matrix and Statistics

               Reference
Prediction      B cell BnT cell CD4+ T cell CD8+ T cell FOXP3+ T cell
  B cell          2841        0           6           0             0
  BnT cell           0     1053           8           0             0
  CD4+ T cell        1        0        2110           1             1
  CD8+ T cell        0        0           0        1084             0
  FOXP3+ T cell      0        0           2           0           236
  Macrophage         0        0           0           0             0
  Neutrophil         0        0           0           0             0
  pDC                0        0           0           0             0
  Stroma             0        0           0           0             0
  Tumor              0        0           0           0             0
  unknown            0        0           0           0             0
               Reference
Prediction      Macrophage Neutrophil   pDC Stroma Tumor unknown
  B cell                 0          0     1      0     0       0
  BnT cell               0          0     0      0     0       0
  CD4+ T cell            0          0     0      0     0       0
  CD8+ T cell            0          0     0      0     4       0
  FOXP3+ T cell          0          0     0      0     0       0
  Macrophage          1087          0     0      0     1       0
  Neutrophil             0        786     0      0     2       0
  pDC                    5          0   209      0     0       0
  Stroma                 0          0     0    873     2       0
  Tumor                  0          0     0      2 15897       4
  unknown                0          0     0      0     0      89

Overall Statistics

               Accuracy : 0.9985
                 95% CI : (0.9979, 0.9989)
    No Information Rate : 0.6047
    P-Value [Acc > NIR] : < 2.2e-16

                  Kappa : 0.9975

 Mcnemar's Test P-Value : NA

Statistics by Class:

                     Class: B cell Class: BnT cell Class: CD4+ T cell
Sensitivity                 0.9996         1.00000            0.99247
Specificity                 0.9997         0.99968            0.99988
Pos Pred Value              0.9975         0.99246            0.99858
Neg Pred Value              1.0000         1.00000            0.99934
Prevalence                  0.1080         0.04003            0.08082
Detection Rate              0.1080         0.04003            0.08021
Detection Prevalence        0.1083         0.04033            0.08033
Balanced Accuracy           0.9997         0.99984            0.99618
                     Class: CD8+ T cell Class: FOXP3+ T cell Class: Macrophage
Sensitivity                     0.99908             0.995781           0.99542
Specificity                     0.99984             0.999923           0.99996
Pos Pred Value                  0.99632             0.991597           0.99908
Neg Pred Value                  0.99996             0.999962           0.99980
Prevalence                      0.04125             0.009010           0.04151
Detection Rate                  0.04121             0.008972           0.04132
Detection Prevalence            0.04136             0.009048           0.04136
Balanced Accuracy               0.99946             0.997852           0.99769
                     Class: Neutrophil Class: pDC Class: Stroma Class: Tumor
Sensitivity                    1.00000   0.995238       0.99771       0.9994
Specificity                    0.99992   0.999808       0.99992       0.9994
Pos Pred Value                 0.99746   0.976636       0.99771       0.9996
Neg Pred Value                 1.00000   0.999962       0.99992       0.9991
Prevalence                     0.02988   0.007983       0.03326       0.6047
Detection Rate                 0.02988   0.007945       0.03319       0.6043
Detection Prevalence           0.02996   0.008135       0.03326       0.6046
Balanced Accuracy              0.99996   0.997523       0.99882       0.9994
                     Class: unknown
Sensitivity                0.956989
Specificity                1.000000
Pos Pred Value             1.000000
Neg Pred Value             0.999847
Prevalence                 0.003535
Detection Rate             0.003383
Detection Prevalence       0.003383
Balanced Accuracy          0.978495
a <- data.frame(cm$byClass) %>%
  mutate(class = sub("Class: ", "", rownames(cm$byClass))) %>%
  ggplot() +
  geom_point(aes(1 - Specificity, Sensitivity,
                 size = Detection.Rate,
                 fill = class),
             shape = 21) +
  scale_fill_manual(values = metadata(sce)$colour_vectors$layer_1) +
  theme_bw() +
  theme(text=element_text(size=12)) +
  ylab("Sensitivity (TPR)") +
  xlab("1 - Specificity (FPR)")

legend <- get_legend(a)
a + theme(legend.position = "none")

Version Author Date
7e52c83 toobiwankenobi 2022-02-22
plot(legend)

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

We will also observe the distribution of classification probabilities per image and class:

cur_pred <- predict(rffit, newdata = t(assay(test_sce, "asinh")[rowData(sce)$good_marker,]),
                    type = "prob")

cur_pred %>%
  mutate(class = test_sce$layer_1_gated,
         image = test_sce$ImageNumber) %>%
  reshape2::melt(id.vars = c("class", "image"), variable.name = "celltype", value.name = "probability") %>%
  filter(class == celltype) %>%
  ggplot() +
  geom_boxplot(aes(interaction(image), probability), outlier.size = 0.5) +
    facet_wrap(. ~ class) +
    theme(axis.text.x = element_text(angle = 90, hjust = 1))

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

This plot shows the median probability for each image and class.

Predicting new data

Finally, we will predict the labels of all other cells. For cell-type classification, we will use the method that was trained across all images.

start = Sys.time()
cell_labels.class <- as.character(predict.train(rffit,
                       newdata = t(assay(unlab_sce[rowData(sce)$good_marker,], "asinh")),
                       type = "raw"))
cell_labels.prob <- predict.train(rffit,
                       newdata = t(assay(unlab_sce[rowData(sce)$good_marker,], "asinh")),
                       type = "prob")
end = Sys.time()
print(end-start)
Time difference of 1.016046 mins

Store predictions in SCE object. We will not overwrite the labels of the already labelled cells.

cell_labels <- sce$layer_1_gated
cell_labels[colnames(unlab_sce)] <- cell_labels.class

sce$celltype <- cell_labels

Visualization

Here, we will visualize the predicted cell-types and their associated classification probabilities.

Using reduced dimensions

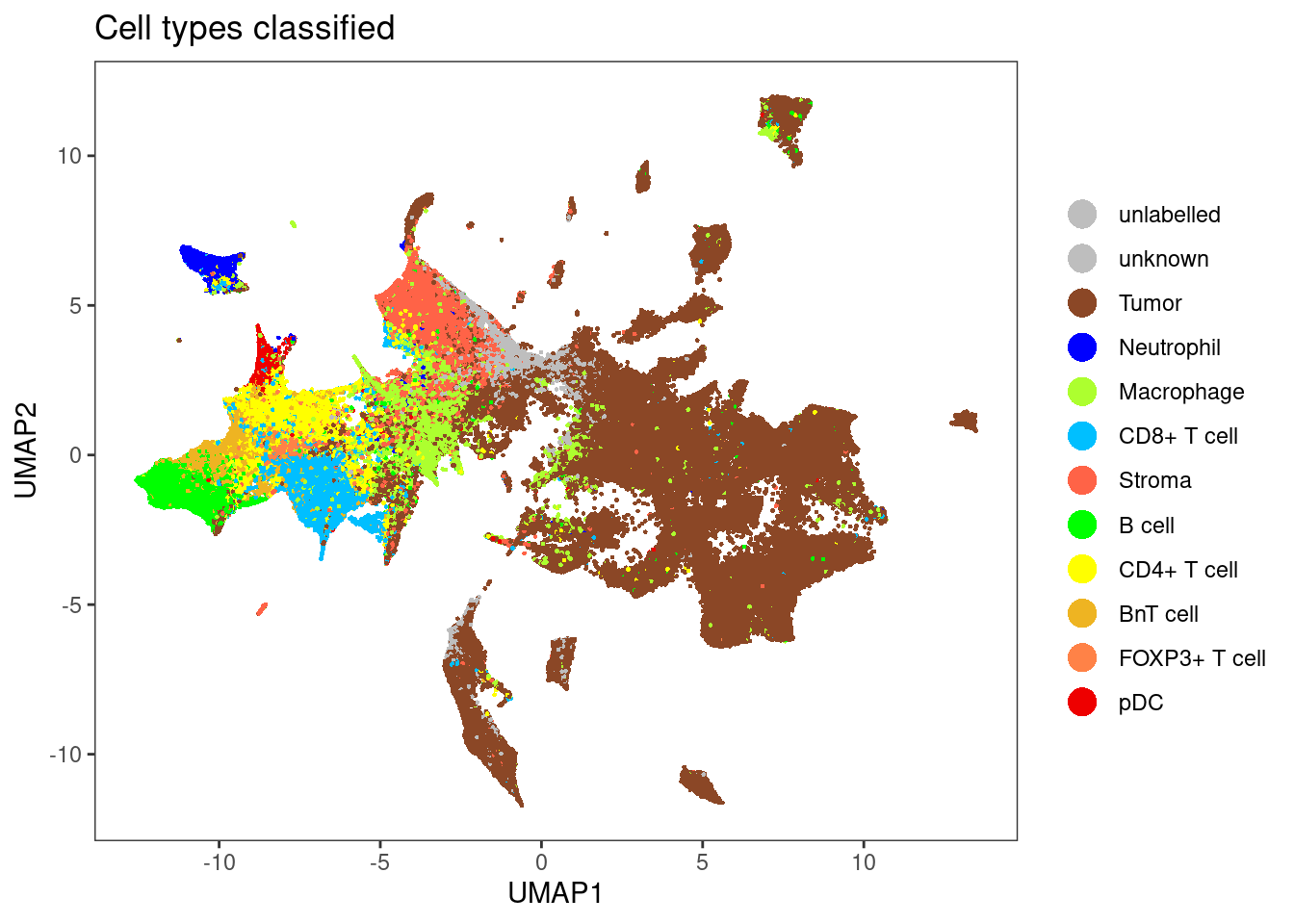

dittoDimPlot(sce[,sce$layer_1_gated != "unlabelled"], var = "celltype", reduction.use = "UMAP", size = 0.5,
              color.panel = metadata(sce)$colour_vectors$layer_1, main = "Cell types gated")

Version Author Date
7e52c83 toobiwankenobi 2022-02-22
dittoDimPlot(sce[,sce$layer_1_gated == "unlabelled"], var = "celltype", reduction.use = "UMAP", size = 0.5,
              color.panel = metadata(sce)$colour_vectors$layer_1, main = "Cell types classified")

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

Probabilities for all celltypes

for (i in unique(cell_labels.class)) {
  cur_df <- data.frame(UMAP1 = reducedDim(unlab_sce, "UMAP")[,1],
       UMAP2 = reducedDim(unlab_sce, "UMAP")[,2],
       prob = cell_labels.prob[,i],
       class = cell_labels.class == i)

  ggplot() + geom_point(aes(UMAP1, UMAP2), data = cur_df[!cur_df$class,],
                       color = "gray") +
    geom_point(aes(UMAP1, UMAP2, color = prob), data = cur_df[cur_df$class,],
             size = 0.5)+
    scale_colour_viridis(name = paste0(i, " probability"))
}

Visualization of marker expression

Finally, we will visualize the marker expression per cell type using the classified cells.

unlab_sce <- sce[,sce$layer_1_gated == "unlabelled"]
agr_sce <- aggregateAcrossCells(unlab_sce, ids = colData(unlab_sce)[,c("ImageNumber", "celltype")],
                                average = TRUE)
Warning: 'average=' is deprecated, use 'statistics=' instead
assay(agr_sce, "asinh") <- asinh(counts(agr_sce))

colnames(agr_sce) <- paste0(agr_sce$ImageNumber, "_", agr_sce$celltype)

rownames(sce)
 [1] "Vimentin"  "Caveolin1" "HistoneH3" "SMA"       "CD15"      "H3K27me3"
 [7] "CD7"       "CXCR2"     "HLADR"     "S100"      "CD19"      "CD45RA"
[13] "Sox9"      "TOX1"      "CD20"      "CD68"      "pERK"      "CD3"
[19] "CD36"      "p75"       "PD1"       "MiTF"      "CD11b"     "GrzB"
[25] "PDL1"      "TCF7"      "CD45RO"    "FOXP3"     "ICOS"      "bCatenin"
[31] "CD8"       "Collagen1" "Ki67"      "CD11c"     "pS6"       "CD4"
[37] "IDO1"      "SOX10"     "CD303"     "CD206"     "PARP"      "DNA1"
[43] "DNA2"      "Ki67Pt198" "CD45"      "MPO"
# Non-scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "asinh",
            annot.by = c("celltype"),
            order.by = "celltype", cluster_rows = FALSE,
            scale = "none", heatmap.colors = viridis(100),
            annotation_colors = list(celltype = metadata(sce)$colour_vectors$layer_1))

Version Author Date
7e52c83 toobiwankenobi 2022-02-22
# Centered and scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "asinh",
            annot.by = c("celltype"),
            cluster_rows = FALSE,
            annotation_colors = list(celltype = metadata(sce)$colour_vectors$layer_1),
            heatmap.colors = colorRampPalette(c("dark blue", "white", "dark red"))(100),
            breaks = seq(-3, 3, length.out = 101))

Version Author Date
7e52c83 toobiwankenobi 2022-02-22

Save RDS

saveRDS(sce, "data/data_for_analysis/sce_protein.rds")

# create data frame with class and probabilities and save as csv.
layer_1_dat <- as.data.frame(cell_labels.prob)
layer_1_dat$class <- cell_labels.class

write.csv(layer_1_dat, file = "data/data_for_analysis/layer_1_classification_protein.csv")

sessionInfo()
R version 4.1.2 (2021-11-01)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 20.04.3 LTS

Matrix products: default
BLAS/LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.8.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] parallel  stats4    stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] randomForest_4.6-14         ggpubr_0.4.0
 [3] doParallel_1.0.16           iterators_1.0.13
 [5] foreach_1.5.2               viridis_0.6.2
 [7] viridisLite_0.4.0           dittoSeq_1.6.0
 [9] forcats_0.5.1               stringr_1.4.0
[11] dplyr_1.0.7                 purrr_0.3.4
[13] readr_2.1.2                 tidyr_1.2.0
[15] tibble_3.1.6                tidyverse_1.3.1
[17] scater_1.22.0               scuttle_1.4.0
[19] SingleCellExperiment_1.16.0 SummarizedExperiment_1.24.0
[21] Biobase_2.54.0              GenomicRanges_1.46.1
[23] GenomeInfoDb_1.30.1         IRanges_2.28.0
[25] S4Vectors_0.32.3            BiocGenerics_0.40.0
[27] MatrixGenerics_1.6.0        matrixStats_0.61.0
[29] caret_6.0-90                lattice_0.20-45
[31] ggplot2_3.3.5               workflowr_1.7.0

loaded via a namespace (and not attached):
  [1] readxl_1.3.1              backports_1.4.1
  [3] plyr_1.8.6                splines_4.1.2
  [5] BiocParallel_1.28.3       listenv_0.8.0
  [7] digest_0.6.29             htmltools_0.5.2
  [9] fansi_1.0.2               magrittr_2.0.2
 [11] ScaledMatrix_1.2.0        tzdb_0.2.0
 [13] recipes_0.1.17            globals_0.14.0
 [15] modelr_0.1.8              gower_0.2.2
 [17] colorspace_2.0-2          rvest_1.0.2
 [19] ggrepel_0.9.1             haven_2.4.3
 [21] xfun_0.29                 callr_3.7.0
 [23] crayon_1.4.2              RCurl_1.98-1.5
 [25] jsonlite_1.7.3            survival_3.2-13
 [27] glue_1.6.1                gtable_0.3.0
 [29] ipred_0.9-12              zlibbioc_1.40.0
 [31] XVector_0.34.0            DelayedArray_0.20.0
 [33] car_3.0-12                BiocSingular_1.10.0
 [35] future.apply_1.8.1        abind_1.4-5
 [37] scales_1.1.1              pheatmap_1.0.12
 [39] DBI_1.1.2                 rstatix_0.7.0
 [41] Rcpp_1.0.8                proxy_0.4-26
 [43] rsvd_1.0.5                lava_1.6.10
 [45] prodlim_2019.11.13        httr_1.4.2
 [47] RColorBrewer_1.1-2        ellipsis_0.3.2
 [49] farver_2.1.0              pkgconfig_2.0.3
 [51] nnet_7.3-17               sass_0.4.0
 [53] dbplyr_2.1.1              utf8_1.2.2
 [55] labeling_0.4.2            tidyselect_1.1.1
 [57] rlang_1.0.0               reshape2_1.4.4
 [59] later_1.3.0               munsell_0.5.0
 [61] cellranger_1.1.0          tools_4.1.2
 [63] cli_3.1.1                 generics_0.1.2
 [65] ggridges_0.5.3            broom_0.7.12
 [67] evaluate_0.14             fastmap_1.1.0
 [69] yaml_2.2.2                ModelMetrics_1.2.2.2
 [71] processx_3.5.2            knitr_1.37
 [73] fs_1.5.2                  future_1.23.0
 [75] nlme_3.1-155              sparseMatrixStats_1.6.0
 [77] whisker_0.4               xml2_1.3.3
 [79] compiler_4.1.2            rstudioapi_0.13
 [81] beeswarm_0.4.0            e1071_1.7-9
 [83] ggsignif_0.6.3            reprex_2.0.1
 [85] bslib_0.3.1               stringi_1.7.6
 [87] highr_0.9                 ps_1.6.0
 [89] Matrix_1.4-0              vctrs_0.3.8
 [91] pillar_1.7.0              lifecycle_1.0.1
 [93] jquerylib_0.1.4           BiocNeighbors_1.12.0
 [95] cowplot_1.1.1             data.table_1.14.2
 [97] bitops_1.0-7              irlba_2.3.5
 [99] httpuv_1.6.5              R6_2.5.1
[101] promises_1.2.0.1          gridExtra_2.3
[103] vipor_0.4.5               parallelly_1.30.0
[105] codetools_0.2-18          MASS_7.3-55
[107] assertthat_0.2.1          rprojroot_2.0.2
[109] withr_2.4.3               GenomeInfoDbData_1.2.7
[111] hms_1.1.1                 grid_4.1.2
[113] rpart_4.1.16              beachmat_2.10.0
[115] timeDate_3043.102         class_7.3-20
[117] rmarkdown_2.11            DelayedMatrixStats_1.16.0
[119] carData_3.0-5             git2r_0.29.0
[121] getPass_0.2-2             pROC_1.18.0
[123] lubridate_1.8.0           ggbeeswarm_0.6.0
