Introduction

This script performs cell-type classification based on manually labelled cells. We will create increasing complexity for cell type labelling.

Preparations

knitr::opts_chunk$set(echo = TRUE, message= FALSE)
knitr::opts_knit$set(root.dir = rprojroot::find_rstudio_root_file())

Read in data

First, we will read in the SingleCellExperiment object and load all libraries.

library(caret)
library(scater)
library(tidyverse)
library(dittoSeq)
library(viridis)
library(doParallel)
library(ggpubr)
library(randomForest)

Load data

sce <- readRDS("data/data_for_analysis/sce_RNA.rds")

# load all subsetted sce object from hierarchichal gating and combine the
label.files <- list.files("data/data_for_analysis/rna/celltype_classifier/", full.names = TRUE)

# Read in SCE objects
cur_sces <- lapply(label.files, readRDS)

# Merge SCE objects
# Due to relabelling, we now need to match the colData entries and remove rowData
cur_entries <- names(colData(cur_sces[[1]]))

cur_sces <- lapply(cur_sces, function(x){
  colData(x) <- colData(x)[,cur_entries]
  rowData(x) <- NA
  return(x)
  })

labelled_sce <- do.call("cbind", cur_sces)

# add rowData
rowData(labelled_sce) <- rowData(sce)

Duplicates

# how many duplicates do we have?
ncol(labelled_sce[,duplicated(labelled_sce$cellID) == T]) / ncol(labelled_sce[,duplicated(labelled_sce$cellID) == F]) * 100
[1] 0.09870831
# remove duplicates (more than 1 label per cellID)
unique_labels <- labelled_sce[,duplicated(labelled_sce$cellID) == F]

Add labels to SCE object

label_vector <- rep("unlabelled", ncol(sce))
names(label_vector) <- colnames(sce)
label_vector[colnames(unique_labels)] <- unique_labels$cytomapper_CellLabel

# unique cell labels
unique(label_vector)
 [1] "unlabelled"           "Vasculature"          "Tumor"
 [4] "CD38"                 "HLA-DR"               "CD134- Tcell"
 [7] "Tcytotoxic"           "CD134+ Tcell"         "Macrophage"
[10] "Neutrophil"           "Stroma"               "unknown"
[13] "exhausted Tcytotoxic"
# add to sce
colData(sce)$layer_1_gated <- label_vector

Create colour vector

Here, we will define a colour vector for the cell-types contained in layer 1.

layer1_colours <- vector(length = length(unique(label_vector)))
names(layer1_colours) <- unique(label_vector)

layer1_colours["CD38"] <- "goldenrod2"
layer1_colours["HLA-DR"] <- "green1"
layer1_colours["Macrophage"] <- "greenyellow"
layer1_colours["Neutrophil"] <- "blue1"
layer1_colours["CD134- Tcell"] <- "yellow"
layer1_colours["CD134+ Tcell"] <- "sienna1"
layer1_colours["Vasculature"] <- "red2"
layer1_colours["Stroma"] <- "tomato"
layer1_colours["Tcytotoxic"] <- "deepskyblue"
layer1_colours["exhausted Tcytotoxic"] <- "deeppink"
layer1_colours["Tumor"] <- "sienna4"
layer1_colours["unknown"] <- "darkgray"
layer1_colours["unlabelled"] <- "gray"

# Save in SCE object
metadata(sce)$colour_vectors$layer_1 <- layer1_colours

Quality control

In the next step, we will check the quality of the labels by:

  1. checking how many cells contain multiple labels (see chunk 2)
  2. how many cells of how many images are labeled
  3. how balanced the classes are
  4. if the selected cells actually express the markers that they are supposed to express

Next, we will check how many cells and how many images are labelled.

# 2. How many cells of how many images are labelled

# Percent cells labelled
as_tibble(colData(sce)) %>%
  summarise(labelled_cells = sum(layer_1_gated != "unlabelled")/n()) * 100
  labelled_cells
1       15.00411
# Percent images labelled
as_tibble(colData(sce)) %>%
  group_by(ImageNumber) %>%
  summarise(labelled_cells = sum(layer_1_gated != "unlabelled")) %>%
  ungroup() %>%
  summarise(labelled_images = sum(labelled_cells != 0)/n()) * 100
  labelled_images
1        45.78313
# Percent of cells labelled per image
as_tibble(colData(sce)) %>%
  group_by(ImageNumber) %>%
  summarise(labelled_cells = sum(layer_1_gated != "unlabelled")/n(),
            number_cells = n()) %>%
  as.data.frame()
    ImageNumber labelled_cells number_cells
1             1   0.0608424337         1282
2             2   0.0000000000         1259
3             3   0.6302583026         5420
4             4   0.6509507179        10308
5             5   0.4851955911         4627
6             6   0.0000000000         1121
7             7   0.4774311927         5450
8             8   0.0000000000         1713
9             9   0.0000000000         2343
10           10   0.0000000000         5227
11           11   0.0857067857         7619
12           12   0.2250061713         8102
13           13   0.1802919708         4110
14           14   0.4633860574         6828
15           15   0.0000000000         3612
16           16   0.0000000000         6202
17           17   0.2685050798         2067
18           18   0.7754577092         6609
19           19   0.5932611312         4986
20           20   0.2851585877         6684
21           21   0.0009721952         5143
22           22   0.1486738887         5354
23           23   0.0000000000         3918
24           24   0.0000000000         6890
25           25   0.0000000000         7950
26           26   0.0000000000         5697
27           27   0.0000000000         5655
28           28   0.0000000000         7343
29           29   0.0000000000         5738
30           30   0.0433778858         8230
31           31   0.0253794266        11860
32           32   0.6440576230         1666
33           33   0.0477107720         6749
34           34   0.0000000000         5818
35           35   0.0000000000         5612
36           36   0.0000000000         4242
37           37   0.2052594003         8404
38           38   0.0000000000          522
39           39   0.3264580370         7030
40           40   0.0687802961         7633
41           41   0.3979097629         3923
42           42   0.3447955390         3228
43           43   0.5761103924         4638
44           44   0.0000000000         5233
45           45   0.0000000000         8065
46           46   0.5218669607         2721
47           47   0.0000000000         1183
48           48   0.0001741857         5741
49           49   0.1722336257         5359
50           50   0.0000000000         1423
51           51   0.6531093126         9761
52           52   0.0000000000         6188
53           53   0.0000000000         7246
54           54   0.4339076079         6559
55           55   0.4261586803         5092
56           56   0.0000000000         1969
57           57   0.0000000000          136
58           58   0.6358640082         7824
59           59   0.0100279851         4288
60           60   0.7352537723         5103
61           61   0.0000000000         6871
62           62   0.0000000000         9609
63           63   0.0000000000         3733
64           64   0.0000000000         5643
65           65   0.2584729256         5134
66           66   0.0000000000         3311
67           67   0.0203687822         4664
68           68   0.8311225500         5051
69           69   0.0000000000         3108
70           70   0.0000000000         4269
71           71   0.0000000000          768
72           72   0.4892120521        10521
73           73   0.4762782900         5965
74           74   0.0000000000         6471
75           75   0.0372771475         4319
76           76   0.0000000000         6186
77           77   0.0000000000         3442
78           78   0.0000000000         6356
79           79   0.0000000000         3308
80           80   0.0042877561         6297
81           81   0.0000000000         7091
82           82   0.0000000000         6886
83           83   0.0000000000         1044
84           84   0.8013168724         6075
85           85   0.0000000000         5666
86           86   0.0521910389         2031
87           87   0.0819985656         4183
88           88   0.0000000000         8960
89           89   0.0000000000         6809
90           90   0.2976159627         7718
91           91   0.0000000000         3523
92           92   0.0000000000         2111
93           93   0.0000000000         4524
94           94   0.9257018768         6447
95           95   0.0000000000         3298
96           96   0.0000000000         1660
97           97   0.0000000000         1715
98           98   0.0000000000         3352
99           99   0.4570678337        11425
100         100   0.0000000000         3155
101         101   0.0000000000         7240
102         102   0.0381465013         4273
103         103   0.1079253449         7394
104         104   0.3565464262         5988
105         105   0.0587593233         5497
106         106   0.4434270765         4587
107         107   0.0000000000         1529
108         108   0.0834852351         5486
109         109   0.0803448707         8003
110         110   0.0000000000         6358
111         111   0.3372817194         8189
112         112   0.0000000000         5278
113         113   0.0000000000         7471
114         114   0.1358318891         4616
115         115   0.1058166989         4659
116         116   0.0000000000         5665
117         117   0.0000000000         5472
118         118   0.0000000000         3151
119         119   0.2458682939         7866
120         120   0.0000000000         6598
121         121   0.0000000000         5310
122         122   0.0819408740         3112
123         123   0.0222222222         7065
124         124   0.0000000000         4971
125         125   0.0000000000         3663
126         126   0.0000000000         8504
127         127   0.0058910162         6790
128         128   0.5924764890         5742
129         129   0.6383304614         5223
130         130   0.0000000000          727
131         131   0.1086138513         9833
132         132   0.0000000000         7723
133         133   0.0000000000         3655
134         134   0.0942982456         5472
135         135   0.0000000000         9404
136         136   0.0000000000         3313
137         137   0.0000000000         7845
138         138   0.0000000000         4145
139         139   0.0537383178         6420
140         140   0.0127215552         6996
141         141   0.4080804517         5668
142         142   0.0000000000         5932
143         143   0.0000000000          729
144         144   0.1777088773         6128
145         145   0.0000000000         3713
146         146   0.0000000000          896
147         147   0.0000000000         4532
148         148   0.0000000000          761
149         149   0.0000000000         2295
150         150   0.0100050025         5997
151         151   0.0303030303        10494
152         152   0.0528153645         4582
153         153   0.0000000000         4204
154         154   0.6292493726         4383
155         155   0.0000000000         6009
156         156   0.0000000000         5227
157         157   0.0000000000          502
158         158   0.0000000000         3326
159         159   0.0000000000         5323
160         160   0.2551888397         2939
161         161   0.0000000000         4527
162         162   0.0767246937         7755
163         163   0.0000000000         6801
164         164   0.0000000000         4910
165         165   0.0315228967         4695
166         166   0.0000000000         5300

We will check how balanced the classes are across the images.

# Total cells per class
as_tibble(colData(sce)) %>%
  group_by(layer_1_gated) %>%
  summarise(number_cells = n())
# A tibble: 13 × 2
   layer_1_gated        number_cells
   <chr>                       <int>
 1 CD134- Tcell                20610
 2 CD134+ Tcell                  806
 3 CD38                         4440
 4 exhausted Tcytotoxic          553
 5 HLA-DR                       9407
 6 Macrophage                   7948
 7 Neutrophil                   3264
 8 Stroma                       1560
 9 Tcytotoxic                   4662
10 Tumor                       74661
11 unknown                        72
12 unlabelled                 734588
13 Vasculature                  1692
# Total cells per class and Sample
as_tibble(colData(sce)) %>%
  group_by(layer_1_gated, ImageNumber) %>%
  summarise(number_cells = n()) %>%
  as.data.frame() %>%
  head(.)
  layer_1_gated ImageNumber number_cells
1  CD134- Tcell           4         3995
2  CD134- Tcell           5          759
3  CD134- Tcell           7          512
4  CD134- Tcell          12         1002
5  CD134- Tcell          37          567
6  CD134- Tcell          39         1001

Now, we will check the expression of selected markers across the classes and visualize cell labels on UMAP.

lab_sce <- sce[,sce$layer_1_gated != "unlabelled"]
agr_sce <- aggregateAcrossCells(lab_sce, ids = colData(lab_sce)[,c("ImageNumber", "layer_1_gated")],
                                average = TRUE)
Warning: 'average=' is deprecated, use 'statistics=' instead
assay(agr_sce, "asinh") <- asinh(counts(agr_sce))
assay(agr_sce, "scaled_asinh") <- t(scale(t(asinh(counts(agr_sce)))))

colnames(agr_sce) <- paste0(agr_sce$ImageNumber, "_", agr_sce$layer_1_gated)

# Define markers that were used for gating
cur_markers <- c("SMA", "CK5","CD38","HLADR","S100","Cadherin11","FAP", "CD134", "CD68",
                 "CD3", "Lag3", "PD1", "CD8", "SOX10", "CD31", "Mart1", "pRB", "CD15", "MPO",
                 "CD163")

# Non-scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "asinh",
             cells.use = colnames(agr_sce[cur_markers,]),
            annot.by = c("ImageNumber", "layer_1_gated"),
            order.by = "layer_1_gated", cluster_rows = FALSE,
            scale = "none", heatmap.colors = viridis(100),
            annotation_colors = list(layer_1_gated = metadata(sce)$colour_vectors$layer_1))

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22
# Centered and scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "scaled_asinh",
            annot.by = c("ImageNumber", "layer_1_gated"),
            order.by = "layer_1_gated", cluster_rows = FALSE,
            annotation_colors = list(layer_1_gated = metadata(sce)$colour_vectors$layer_1),
            heatmap.colors = colorRampPalette(c("dark blue", "white", "dark red"))(100),
            breaks = seq(-3, 3, length.out = 101))

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22
unlab_sce <- sce[,sce$layer_1_gated == "unlabelled"]

ggplot() +
  geom_point(aes(x = UMAP1, y = UMAP2, colour = layer_1_gated),
             data = data.frame(UMAP1 = reducedDim(unlab_sce, "UMAP")[,1],
                               UMAP2 = reducedDim(unlab_sce, "UMAP")[,2],
                               layer_1_gated = colData(unlab_sce)$layer_1_gated)) +
    geom_point(aes(x = UMAP1, y = UMAP2, colour = layer_1_gated), size = 0.5,
             data = data.frame(UMAP1 = reducedDim(lab_sce, "UMAP")[,1],
                               UMAP2 = reducedDim(lab_sce, "UMAP")[,2],
                               layer_1_gated = colData(lab_sce)$layer_1_gated)) +
  scale_color_manual(values = metadata(sce)$colour_vectors$layer_1) +
  theme_bw()

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

Random Forrest Training

After quality control, we will now use a random forest classifier to classify the remaining cells in the dataset.

Splitting by cell-types

In the first instance, we will split the labelled data based on their cell-types and ignore from which images the calls come. In the current setting most images have been labelled but in the future we want to have a closer look at how well cells of non-labelled images are classified.

Train and validate the classifier

We will first split the labelled data into training and test (validation) data at a ratio of 70/30 train/test.

set.seed(1234)
trainIndex <- createDataPartition(factor(lab_sce$layer_1_gated), p = 0.70)
train_sce <- lab_sce[,trainIndex$Resample1]
test_sce <- lab_sce[,-trainIndex$Resample1]

Here, we will first use a 10-fold crossvalidation by partitioning the data randomly across the full dataset. This process is repeated 5 times. We will also use parallel processing for time reasons. For the randomForrest classifier, we need to tune the mtry parameter - the number of variables sampled for each split.

# Define seeds for parallel processing
# Per iteration, we evaluate 10 models while tuning mtry
set.seed(222)
seeds <- vector(mode = "list", length = 11)
for (i in 1:10) {
  seeds[[i]] <- sample.int(5000, 10)
}

seeds[[11]] <- sample.int(5000, 1)

fitControl <- trainControl(method = "repeatedcv",
                           repeats = 1,
                           number = 10,
                           seeds = seeds)

cl <- makePSOCKcluster(round(detectCores()/2.5,0), outfile = "")
registerDoParallel(cl)

set.seed(1234)
start = Sys.time()
rffit <- train(x = t(assay(train_sce, "asinh")[rowData(sce)$good_marker,]),
               y = factor(train_sce$layer_1_gated),
               method = "rf", ntree = 500,
               tuneLength = 10,
               trControl = fitControl,
               allowParallel = TRUE)
stopCluster(cl)
end = Sys.time()
print(end-start)
Time difference of 37.06826 mins
rffit
Random Forest

90777 samples
   33 predictor
   12 classes: 'CD134- Tcell', 'CD134+ Tcell', 'CD38', 'exhausted Tcytotoxic', 'HLA-DR', 'Macrophage', 'Neutrophil', 'Stroma', 'Tcytotoxic', 'Tumor', 'unknown', 'Vasculature'

No pre-processing
Resampling: Cross-Validated (10 fold, repeated 1 times)
Summary of sample sizes: 81700, 81703, 81700, 81699, 81698, 81699, ...
Resampling results across tuning parameters:

  mtry  Accuracy   Kappa
   2    0.9845665  0.9754440
   5    0.9918592  0.9870778
   8    0.9930269  0.9889361
  12    0.9931921  0.9891999
  15    0.9931260  0.9890953
  19    0.9927184  0.9884506
  22    0.9923109  0.9878048
  26    0.9917050  0.9868419
  29    0.9913304  0.9862476
  33    0.9907135  0.9852693

Accuracy was used to select the optimal model using the largest value.
The final value used for the model was mtry = 12.

We will now have a look at the accuracy measures over iterations. The only parameter that has been tuned is mtry.

ggplot(rffit) +
  geom_errorbar(data = rffit$results,
                aes(ymin = Accuracy - AccuracySD,
                    ymax = Accuracy + AccuracySD),
                width = 0.4)

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

We can also compute the confusion matrix:

confusionMatrix(rffit)
Cross-Validated (10 fold, repeated 1 times) Confusion Matrix

(entries are percentual average cell counts across resamples)

                      Reference
Prediction             CD134- Tcell CD134+ Tcell CD38 exhausted Tcytotoxic
  CD134- Tcell                 15.8          0.0  0.0                  0.0
  CD134+ Tcell                  0.0          0.6  0.0                  0.0
  CD38                          0.0          0.0  3.4                  0.0
  exhausted Tcytotoxic          0.0          0.0  0.0                  0.4
  HLA-DR                        0.0          0.0  0.0                  0.0
  Macrophage                    0.0          0.0  0.0                  0.0
  Neutrophil                    0.0          0.0  0.0                  0.0
  Stroma                        0.0          0.0  0.0                  0.0
  Tcytotoxic                    0.0          0.0  0.0                  0.0
  Tumor                         0.0          0.0  0.0                  0.0
  unknown                       0.0          0.0  0.0                  0.0
  Vasculature                   0.0          0.0  0.0                  0.0
                      Reference
Prediction             HLA-DR Macrophage Neutrophil Stroma Tcytotoxic Tumor
  CD134- Tcell            0.0        0.0        0.0    0.0        0.0   0.0
  CD134+ Tcell            0.0        0.0        0.0    0.0        0.0   0.0
  CD38                    0.0        0.0        0.0    0.0        0.0   0.0
  exhausted Tcytotoxic    0.0        0.0        0.0    0.0        0.0   0.0
  HLA-DR                  7.2        0.0        0.0    0.1        0.0   0.0
  Macrophage              0.0        6.1        0.0    0.0        0.0   0.0
  Neutrophil              0.0        0.0        2.5    0.0        0.0   0.0
  Stroma                  0.0        0.0        0.0    1.0        0.0   0.0
  Tcytotoxic              0.0        0.0        0.0    0.0        3.5   0.0
  Tumor                   0.0        0.0        0.0    0.1        0.0  57.5
  unknown                 0.0        0.0        0.0    0.0        0.0   0.0
  Vasculature             0.0        0.0        0.0    0.0        0.0   0.0
                      Reference
Prediction             unknown Vasculature
  CD134- Tcell             0.0         0.0
  CD134+ Tcell             0.0         0.0
  CD38                     0.0         0.0
  exhausted Tcytotoxic     0.0         0.0
  HLA-DR                   0.0         0.0
  Macrophage               0.0         0.0
  Neutrophil               0.0         0.0
  Stroma                   0.0         0.0
  Tcytotoxic               0.0         0.0
  Tumor                    0.0         0.0
  unknown                  0.0         0.0
  Vasculature              0.0         1.2

 Accuracy (average) : 0.9932

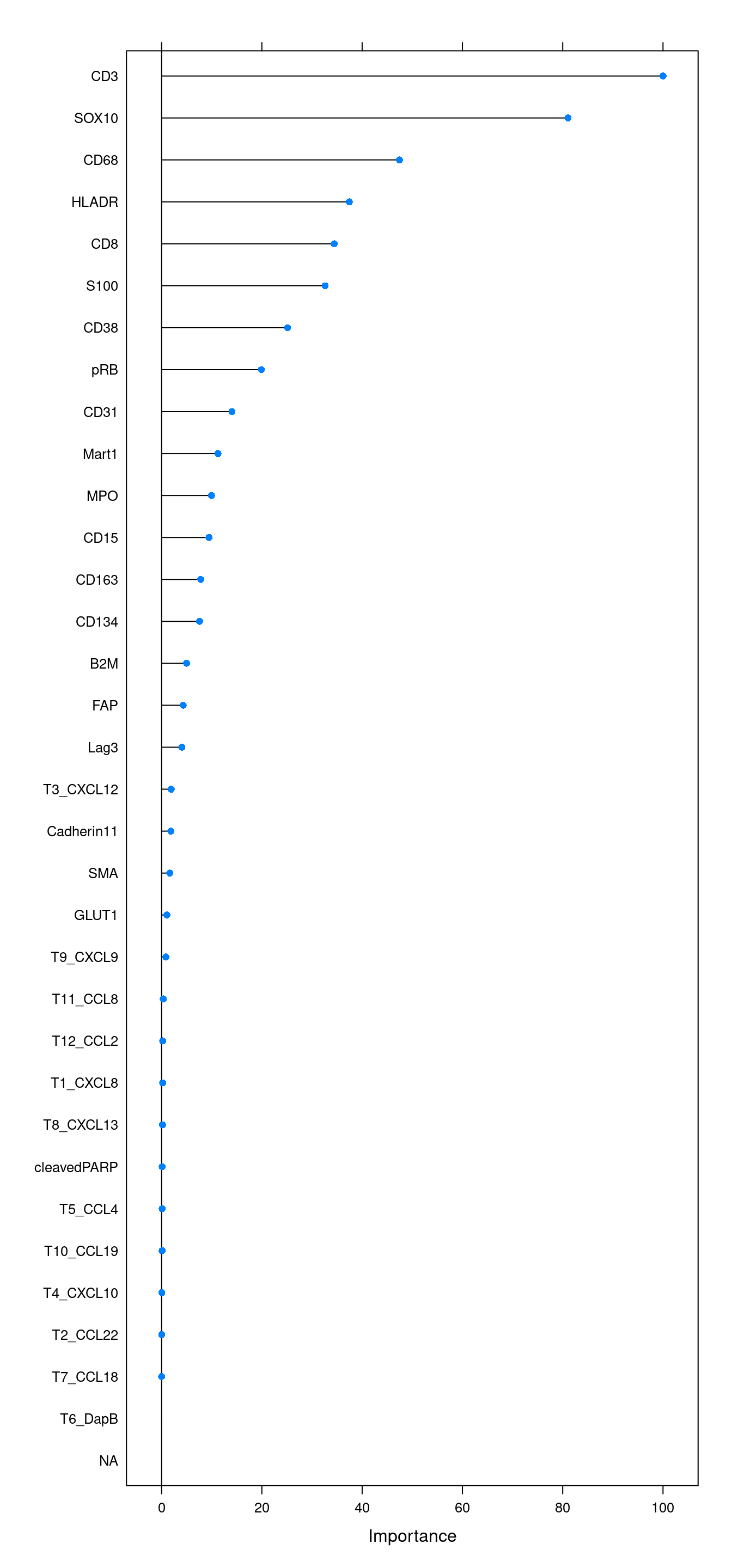

We will also look at the variable importance.

cur_varImp <- varImp(rffit)
plot(cur_varImp, top = 34)

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

Finally, we will validate the model using the test data.

cur_pred <- predict(rffit, newdata = t(assay(test_sce, "asinh")[rowData(sce)$good_marker,]))

cm <- confusionMatrix(data = cur_pred, reference = factor(test_sce$layer_1_gated))
cm
Confusion Matrix and Statistics

                      Reference
Prediction             CD134- Tcell CD134+ Tcell  CD38 exhausted Tcytotoxic
  CD134- Tcell                 6164            6    10                    1
  CD134+ Tcell                    2          234     0                    0
  CD38                            4            0  1310                    0
  exhausted Tcytotoxic            0            0     0                  160
  HLA-DR                          0            0     1                    0
  Macrophage                      0            1     3                    0
  Neutrophil                      0            0     0                    0
  Stroma                          1            0     3                    0
  Tcytotoxic                     12            0     5                    4
  Tumor                           0            0     0                    0
  unknown                         0            0     0                    0
  Vasculature                     0            0     0                    0
                      Reference
Prediction             HLA-DR Macrophage Neutrophil Stroma Tcytotoxic Tumor
  CD134- Tcell              0          0          0      5         12     0
  CD134+ Tcell              0          0          0      0          1     0
  CD38                      0          2          0      9          1     0
  exhausted Tcytotoxic      0          0          0      0          3     0
  HLA-DR                 2796          0          0     25          0    11
  Macrophage                0       2365          0     19          0     5
  Neutrophil                0          9        978      0          0     0
  Stroma                   11          4          1    386          0     3
  Tcytotoxic                0          0          0      1       1381     0
  Tumor                     5          4          0     22          0 22368
  unknown                   0          0          0      0          0     0
  Vasculature              10          0          0      1          0    11
                      Reference
Prediction             unknown Vasculature
  CD134- Tcell               0           3
  CD134+ Tcell               0           0
  CD38                       0           1
  exhausted Tcytotoxic       0           0
  HLA-DR                     0           9
  Macrophage                 0           0
  Neutrophil                 0           0
  Stroma                     2           0
  Tcytotoxic                 0           1
  Tumor                      3           5
  unknown                   16           0
  Vasculature                0         488

Overall Statistics

               Accuracy : 0.9935
                 95% CI : (0.9927, 0.9943)
    No Information Rate : 0.5758
    P-Value [Acc > NIR] : < 2.2e-16

                  Kappa : 0.9897

 Mcnemar's Test P-Value : NA

Statistics by Class:

                     Class: CD134- Tcell Class: CD134+ Tcell Class: CD38
Sensitivity                       0.9969            0.970954     0.98348
Specificity                       0.9989            0.999922     0.99955
Pos Pred Value                    0.9940            0.987342     0.98719
Neg Pred Value                    0.9994            0.999819     0.99941
Prevalence                        0.1590            0.006196     0.03424
Detection Rate                    0.1585            0.006016     0.03368
Detection Prevalence              0.1594            0.006093     0.03411
Balanced Accuracy                 0.9979            0.985438     0.99152
                     Class: exhausted Tcytotoxic Class: HLA-DR
Sensitivity                             0.969697       0.99079
Specificity                             0.999923       0.99872
Pos Pred Value                          0.981595       0.98381
Neg Pred Value                          0.999871       0.99928
Prevalence                              0.004242       0.07255
Detection Rate                          0.004113       0.07188
Detection Prevalence                    0.004190       0.07306
Balanced Accuracy                       0.984810       0.99476
                     Class: Macrophage Class: Neutrophil Class: Stroma
Sensitivity                    0.99203           0.99898      0.824786
Specificity                    0.99923           0.99976      0.999349
Pos Pred Value                 0.98830           0.99088      0.939173
Neg Pred Value                 0.99948           0.99997      0.997869
Prevalence                     0.06129           0.02517      0.012031
Detection Rate                 0.06080           0.02514      0.009923
Detection Prevalence           0.06152           0.02537      0.010566
Balanced Accuracy              0.99563           0.99937      0.912068
                     Class: Tcytotoxic Class: Tumor Class: unknown
Sensitivity                    0.98784       0.9987      0.7619048
Specificity                    0.99939       0.9976      1.0000000
Pos Pred Value                 0.98362       0.9983      1.0000000
Neg Pred Value                 0.99955       0.9982      0.9998714
Prevalence                     0.03594       0.5758      0.0005399
Detection Rate                 0.03550       0.5750      0.0004113
Detection Prevalence           0.03609       0.5760      0.0004113
Balanced Accuracy              0.99361       0.9981      0.8809524
                     Class: Vasculature
Sensitivity                     0.96252
Specificity                     0.99943
Pos Pred Value                  0.95686
Neg Pred Value                  0.99951
Prevalence                      0.01303
Detection Rate                  0.01255
Detection Prevalence            0.01311
Balanced Accuracy               0.98098
a <- data.frame(cm$byClass) %>%
  mutate(class = sub("Class: ", "", rownames(cm$byClass))) %>%
  ggplot() +
  geom_point(aes(1 - Specificity, Sensitivity,
                 size = Detection.Rate,
                 fill = class),
             shape = 21) +
  scale_fill_manual(values = metadata(sce)$colour_vectors$layer_1) +
  theme_bw() +
  theme(text=element_text(size=12)) +
  ylab("Sensitivity (TPR)") +
  xlab("1 - Specificity (FPR)")

legend <- get_legend(a)
a + theme(legend.position = "none")

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22
plot(legend)

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

We will also observe the distribution of classification probabilities per image and class:

cur_pred <- predict(rffit, newdata = t(assay(test_sce, "asinh")[rowData(sce)$good_marker,]),
                    type = "prob")

cur_pred %>%
  mutate(class = test_sce$layer_1_gated,
         image = test_sce$ImageNumber) %>%
  reshape2::melt(id.vars = c("class", "image"), variable.name = "celltype", value.name = "probability") %>%
  filter(class == celltype) %>%
  ggplot() +
  geom_boxplot(aes(interaction(image), probability), outlier.size = 0.5) +
    facet_wrap(. ~ class) +
    theme(axis.text.x = element_text(angle = 90, hjust = 1))

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

This plot shows the median probability for each image and class.

Predicting new data

Finally, we will predict the labels of all other cells. For cell-type classification, we will use the method that was trained across all images.

start = Sys.time()
cell_labels.class <- as.character(predict.train(rffit,
                       newdata = t(assay(unlab_sce[rowData(sce)$good_marker,], "asinh")),
                       type = "raw"))
cell_labels.prob <- predict.train(rffit,
                       newdata = t(assay(unlab_sce[rowData(sce)$good_marker,], "asinh")),
                       type = "prob")
end = Sys.time()
print(end-start)
Time difference of 59.39312 secs

Store predictions in SCE object. We will not overwrite the labels of the already labelled cells.

cell_labels <- sce$layer_1_gated
cell_labels[colnames(unlab_sce)] <- cell_labels.class

sce$celltype <- cell_labels

Visualization

Here, we will visualize the predicted cell-types and their associated classification probabilities.

Using reduced dimensions

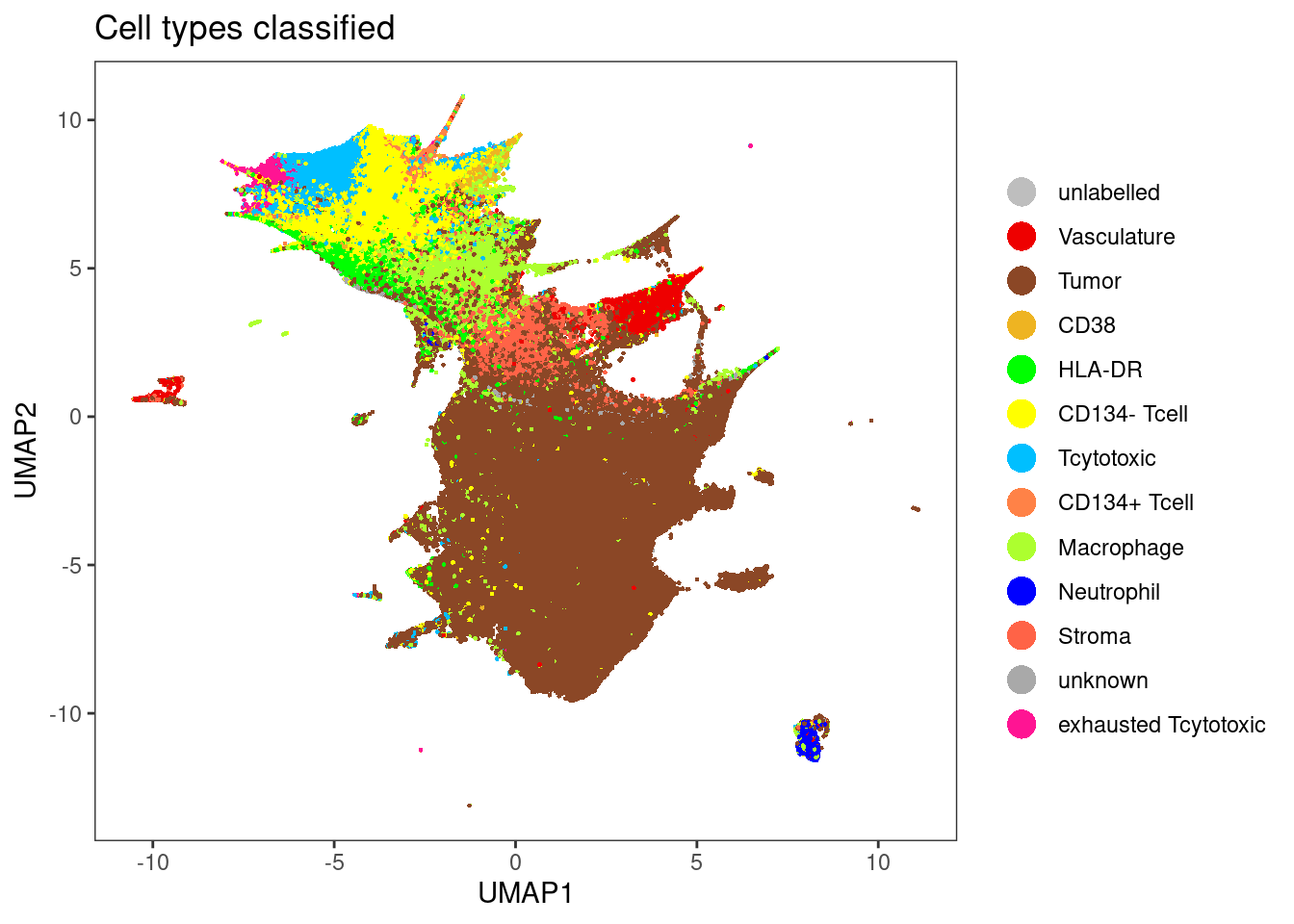

dittoDimPlot(sce[,sce$layer_1_gated != "unlabelled"], var = "celltype", reduction.use = "UMAP", size = 0.5,
              color.panel = metadata(sce)$colour_vectors$layer_1, main = "Cell types gated")

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

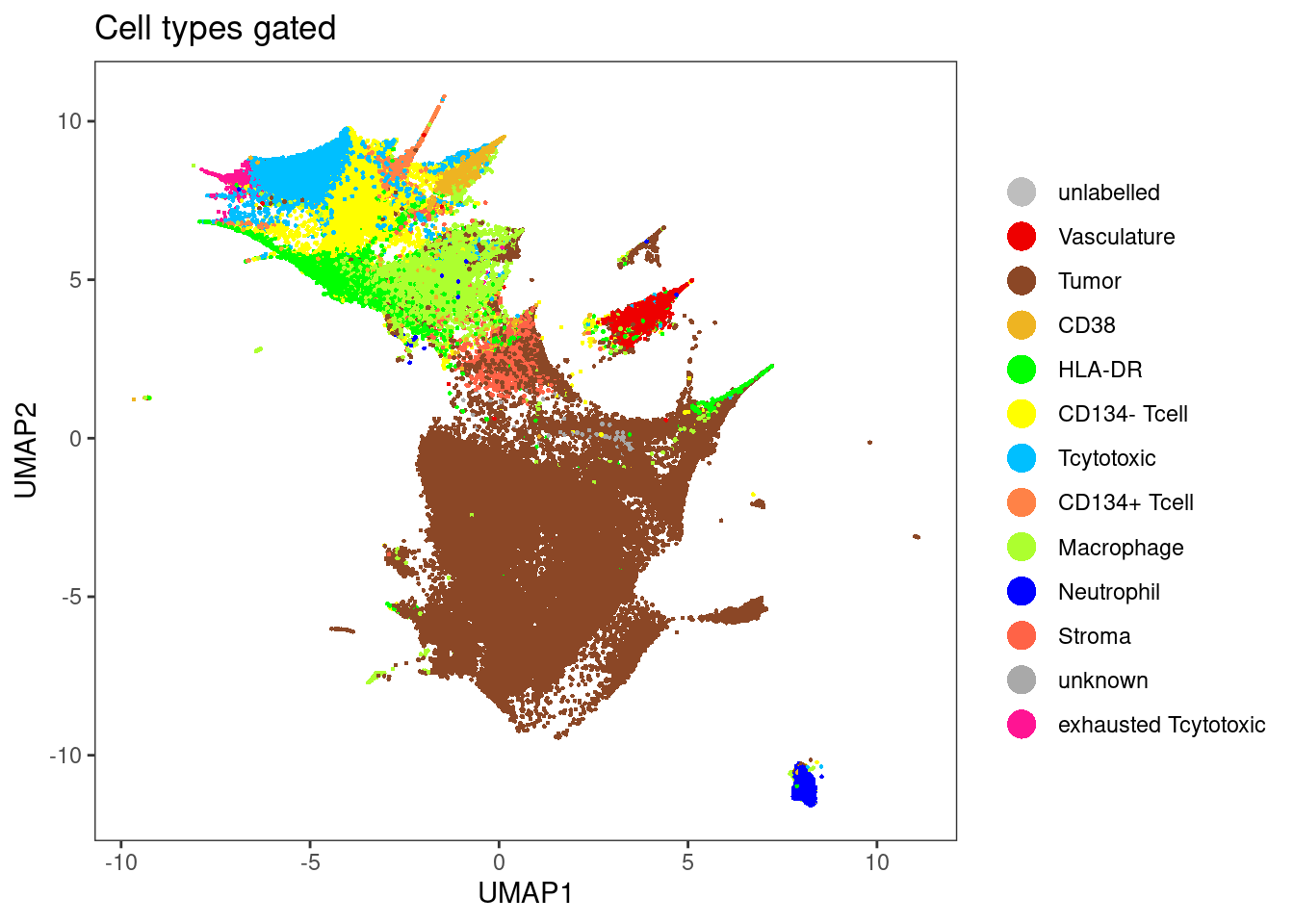

dittoDimPlot(sce[,sce$layer_1_gated == "unlabelled"], var = "celltype", reduction.use = "UMAP", size = 0.5,
              color.panel = metadata(sce)$colour_vectors$layer_1, main = "Cell types classified")

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

Probabilities for all celltypes

for (i in unique(cell_labels.class)) {
  cur_df <- data.frame(UMAP1 = reducedDim(unlab_sce, "UMAP")[,1],
       UMAP2 = reducedDim(unlab_sce, "UMAP")[,2],
       prob = cell_labels.prob[,i],
       class = cell_labels.class == i)

  ggplot() + geom_point(aes(UMAP1, UMAP2), data = cur_df[!cur_df$class,],
                       color = "gray") +
    geom_point(aes(UMAP1, UMAP2, color = prob), data = cur_df[cur_df$class,],
             size = 0.5)+
    scale_colour_viridis(name = paste0(i, " probability"))
}

Visualization of marker expression

Finally, we will visualize the marker expression per cell type using the classified cells.

unlab_sce <- sce[,sce$layer_1_gated == "unlabelled"]
agr_sce <- aggregateAcrossCells(unlab_sce, ids = colData(unlab_sce)[,c("ImageNumber", "celltype")],
                                average = TRUE)
Warning: 'average=' is deprecated, use 'statistics=' instead
assay(agr_sce, "asinh") <- asinh(counts(agr_sce))

colnames(agr_sce) <- paste0(agr_sce$ImageNumber, "_", agr_sce$celltype)

# Non-scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "asinh",
            annot.by = c("celltype"),
            order.by = "celltype", cluster_rows = FALSE,
            scale = "none", heatmap.colors = viridis(100),
            annotation_colors = list(celltype = metadata(sce)$colour_vectors$layer_1))

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22
# Centered and scaled
dittoHeatmap(agr_sce[cur_markers,], assay = "asinh",
            annot.by = c("celltype"),
            cluster_rows = FALSE,
            annotation_colors = list(celltype = metadata(sce)$colour_vectors$layer_1),
            heatmap.colors = colorRampPalette(c("dark blue", "white", "dark red"))(100),
            breaks = seq(-3, 3, length.out = 101))

Version Author Date
1dc2e93 toobiwankenobi 2022-02-22

Save RDS

saveRDS(sce, "data/data_for_analysis/sce_RNA.rds")

# create data frame with class and probabilities and save as csv.
layer_1_dat <- as.data.frame(cell_labels.prob)
layer_1_dat$class <- cell_labels.class

write.csv(layer_1_dat, file = "data/data_for_analysis/layer_1_classification_rna.csv")

sessionInfo()
R version 4.1.2 (2021-11-01)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 20.04.3 LTS

Matrix products: default
BLAS/LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.8.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] parallel  stats4    stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] randomForest_4.6-14         ggpubr_0.4.0
 [3] doParallel_1.0.16           iterators_1.0.13
 [5] foreach_1.5.2               viridis_0.6.2
 [7] viridisLite_0.4.0           dittoSeq_1.6.0
 [9] forcats_0.5.1               stringr_1.4.0
[11] dplyr_1.0.7                 purrr_0.3.4
[13] readr_2.1.2                 tidyr_1.2.0
[15] tibble_3.1.6                tidyverse_1.3.1
[17] scater_1.22.0               scuttle_1.4.0
[19] SingleCellExperiment_1.16.0 SummarizedExperiment_1.24.0
[21] Biobase_2.54.0              GenomicRanges_1.46.1
[23] GenomeInfoDb_1.30.1         IRanges_2.28.0
[25] S4Vectors_0.32.3            BiocGenerics_0.40.0
[27] MatrixGenerics_1.6.0        matrixStats_0.61.0
[29] caret_6.0-90                lattice_0.20-45
[31] ggplot2_3.3.5               workflowr_1.7.0

loaded via a namespace (and not attached):
  [1] readxl_1.3.1              backports_1.4.1
  [3] plyr_1.8.6                splines_4.1.2
  [5] BiocParallel_1.28.3       listenv_0.8.0
  [7] digest_0.6.29             htmltools_0.5.2
  [9] fansi_1.0.2               magrittr_2.0.2
 [11] ScaledMatrix_1.2.0        tzdb_0.2.0
 [13] recipes_0.1.17            globals_0.14.0
 [15] modelr_0.1.8              gower_0.2.2
 [17] colorspace_2.0-2          rvest_1.0.2
 [19] ggrepel_0.9.1             haven_2.4.3
 [21] xfun_0.29                 callr_3.7.0
 [23] crayon_1.4.2              RCurl_1.98-1.5
 [25] jsonlite_1.7.3            survival_3.2-13
 [27] glue_1.6.1                gtable_0.3.0
 [29] ipred_0.9-12              zlibbioc_1.40.0
 [31] XVector_0.34.0            DelayedArray_0.20.0
 [33] car_3.0-12                BiocSingular_1.10.0
 [35] future.apply_1.8.1        abind_1.4-5
 [37] scales_1.1.1              pheatmap_1.0.12
 [39] DBI_1.1.2                 rstatix_0.7.0
 [41] Rcpp_1.0.8                proxy_0.4-26
 [43] rsvd_1.0.5                lava_1.6.10
 [45] prodlim_2019.11.13        httr_1.4.2
 [47] RColorBrewer_1.1-2        ellipsis_0.3.2
 [49] farver_2.1.0              pkgconfig_2.0.3
 [51] nnet_7.3-17               sass_0.4.0
 [53] dbplyr_2.1.1              utf8_1.2.2
 [55] labeling_0.4.2            tidyselect_1.1.1
 [57] rlang_1.0.0               reshape2_1.4.4
 [59] later_1.3.0               munsell_0.5.0
 [61] cellranger_1.1.0          tools_4.1.2
 [63] cli_3.1.1                 generics_0.1.2
 [65] ggridges_0.5.3            broom_0.7.12
 [67] evaluate_0.14             fastmap_1.1.0
 [69] yaml_2.2.2                ModelMetrics_1.2.2.2
 [71] processx_3.5.2            knitr_1.37
 [73] fs_1.5.2                  future_1.23.0
 [75] nlme_3.1-155              sparseMatrixStats_1.6.0
 [77] whisker_0.4               xml2_1.3.3
 [79] compiler_4.1.2            rstudioapi_0.13
 [81] beeswarm_0.4.0            e1071_1.7-9
 [83] ggsignif_0.6.3            reprex_2.0.1
 [85] bslib_0.3.1               stringi_1.7.6
 [87] highr_0.9                 ps_1.6.0
 [89] Matrix_1.4-0              vctrs_0.3.8
 [91] pillar_1.7.0              lifecycle_1.0.1
 [93] jquerylib_0.1.4           BiocNeighbors_1.12.0
 [95] cowplot_1.1.1             data.table_1.14.2
 [97] bitops_1.0-7              irlba_2.3.5
 [99] httpuv_1.6.5              R6_2.5.1
[101] promises_1.2.0.1          gridExtra_2.3
[103] vipor_0.4.5               parallelly_1.30.0
[105] codetools_0.2-18          MASS_7.3-55
[107] assertthat_0.2.1          rprojroot_2.0.2
[109] withr_2.4.3               GenomeInfoDbData_1.2.7
[111] hms_1.1.1                 grid_4.1.2
[113] rpart_4.1.16              beachmat_2.10.0
[115] timeDate_3043.102         class_7.3-20
[117] rmarkdown_2.11            DelayedMatrixStats_1.16.0
[119] carData_3.0-5             git2r_0.29.0
[121] getPass_0.2-2             pROC_1.18.0
[123] lubridate_1.8.0           ggbeeswarm_0.6.0
